01Keep the comforts of life close.
With 600Ah of lithium capacity and 800W of solar as standard, Horizon gives the comforts of everyday life a generous onboard energy foundation, on a powered site or off-grid.
FANTASY CARAVAN’S FLAGSHIP SERIES
Horizon Series – Next Level Multi-Terrain Caravan
A caravan designed to be enjoyed.
From the glow at the entry to the power, climate, storage and living spaces that carry the day, Horizon caravans bring considered details together so every journey feels beautifully appointed.
WHY HORIZON
The pleasure is in the details.
A day away feels different when you can set the atmosphere, keep your comforts close and make room for the things you enjoy. The Horizon Series brings those details together as Fantasy Caravan’s flagship range of multi-terrain caravans.
01
02Make every meal feel like an occasion.
A full cooking setup inside and a slide-out kitchen outside give you the choice to make a meal part of the occasion, wherever you settle in.
03Everything where you want it.
See battery level and charging status at a glance, then adjust the lighting through the app while you stay in the moment.
04A more assured way forward.
Coil-spring independent suspension, PEDDERS shock absorbers and 265/75 R16 MT tyres give Horizon a considered multi-terrain foundation.
EXTERIOR
Step outside, without giving up the comforts.
Make the most of the place you have arrived: cook outdoors, keep your gear close and rinse off before stepping inside. From roofline to chassis, the details feel considered.
A kitchen made for the occasion.
Slide out the side kitchen when you want to cook outdoors; three gas burners and a sink keep the preparation together in one place.
Everything ready when you need it.
The front toolbox gives gas bottles, firewood, charging leads and hoses a dedicated home, with slide-out trays on both sides for easier access.
A distinctive finish from behind.
The rear spoiler and tail-light group share an integrated design, bringing the roofline to a clean, flowing finish and giving Horizon a distinctive silhouette from behind.
Keep the practical things beautifully contained.
A rear toolbox keeps jerry cans together and away from the main living space.
Considered, right down to the chassis.
Look below the body and the detail continues. Horizon’s updated chassis uses a deliberate cut-out pattern, designed to reduce weight while giving the structure a distinctive finish.
Arrive clean. Leave the mess outside.
Use the exterior shower connection to rinse off after the beach or clean a pet before stepping back inside.
Quality, felt in the details.
A solid, reassuring feel in the hand. The exterior door handle brings a considered finish to an everyday touchpoint—a small detail that makes arriving home feel all the more satisfying.
INTERIOR
Comfort, with room to indulge.
From the moment you step inside to the last light at night, Horizon makes room for the comforts and routines that feel like your own.
01 / 03

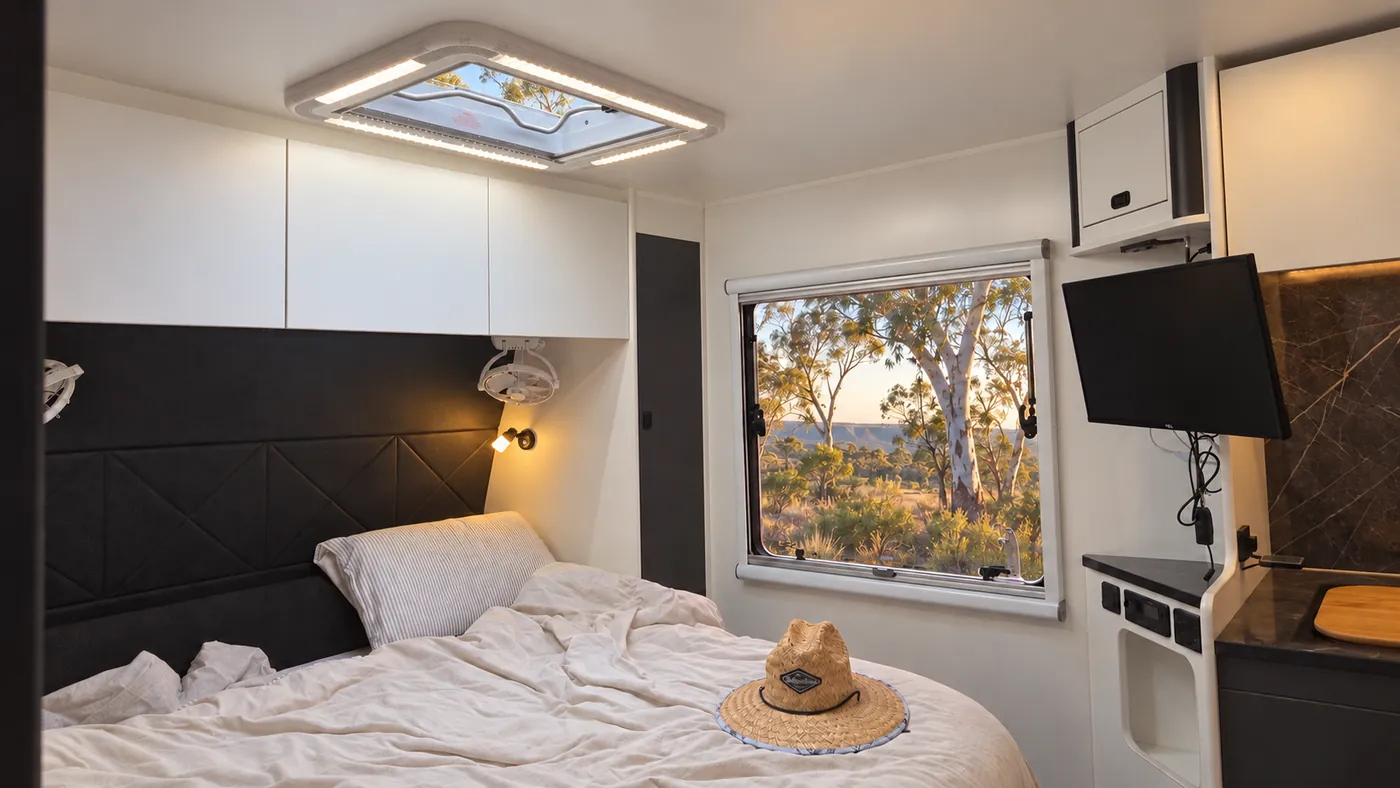

Daylight above. Light after dark.
One medium and one small skylight open the ceiling visually, and both include integrated lighting for the evening.
Step inside, let the light in and settle into your own kind of comfort.
One medium and one small skylight open the ceiling visually, and both include integrated lighting for the evening.

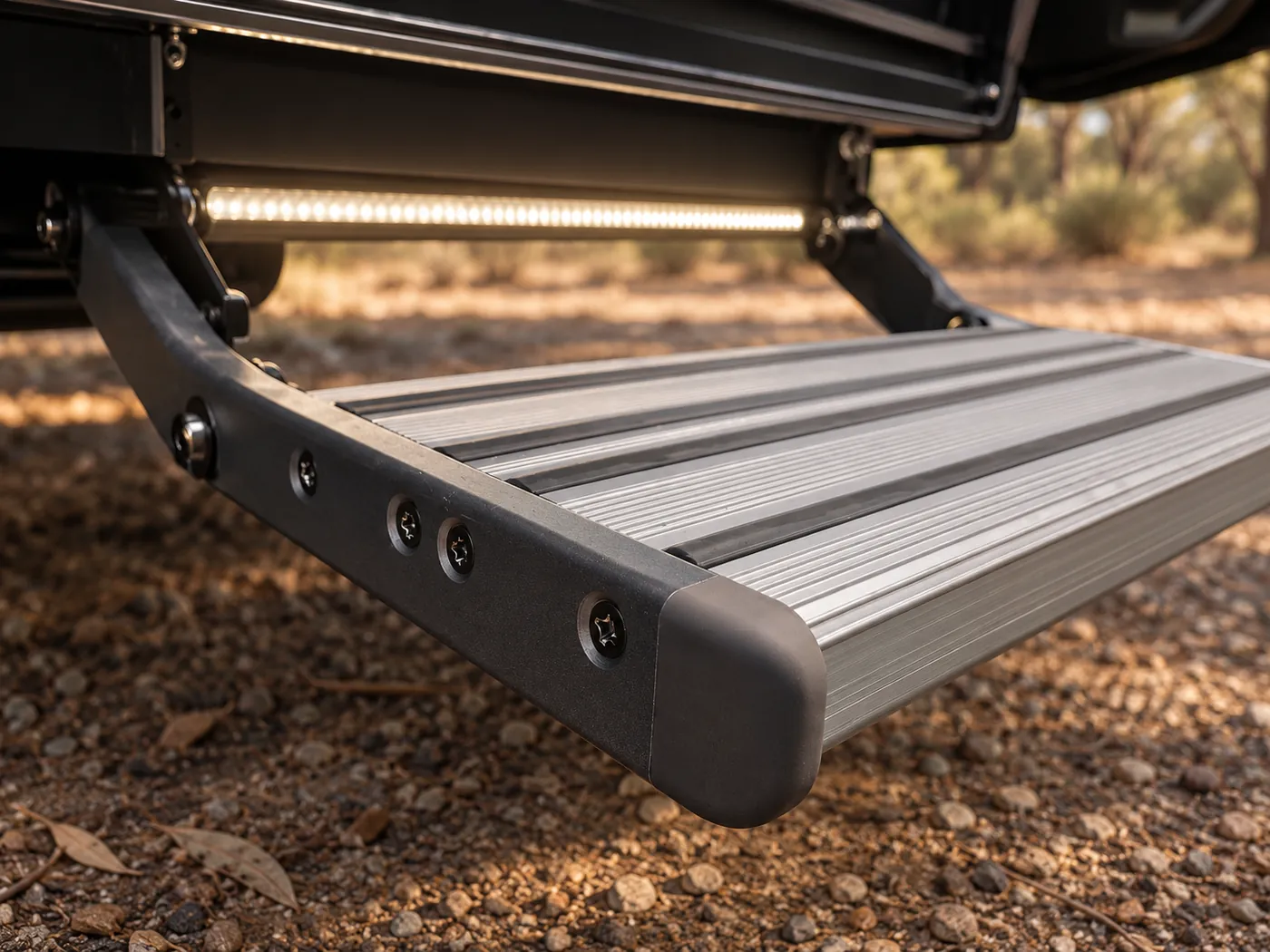

The standard electric retractable step eases entry, while a fixed-style roller blind at the door lets you close off the view when you want privacy.

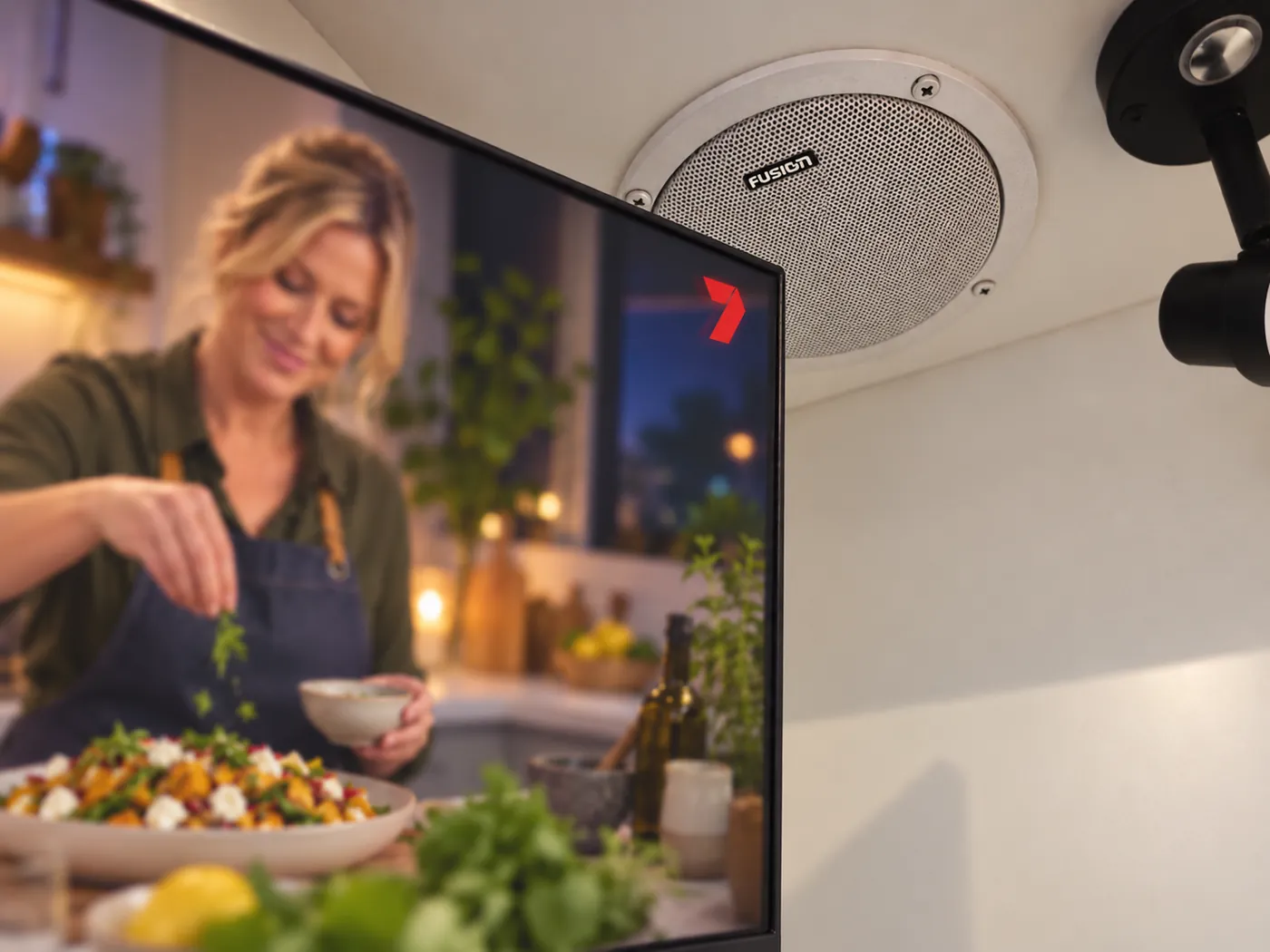

Put on a favourite playlist through the app-connected Fusion system and its interior and exterior speakers, or unwind with a familiar show on the standard 24-inch Smart TV. Make yourself at home, wherever the evening finds you.
01 / 03
The little things, right where you need them.

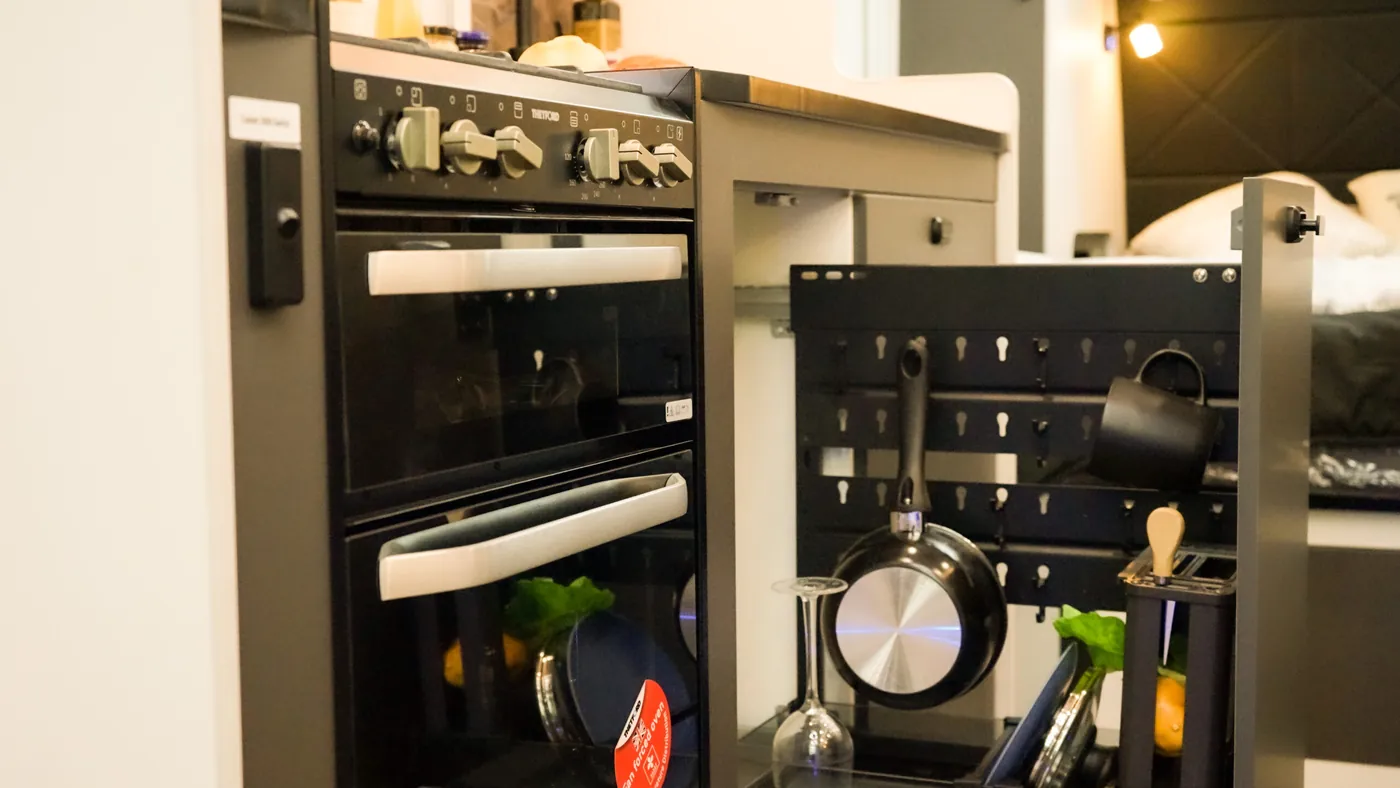

A pull-out basket beneath the cooktop keeps knives and tableware organised, close to where you prepare a meal.

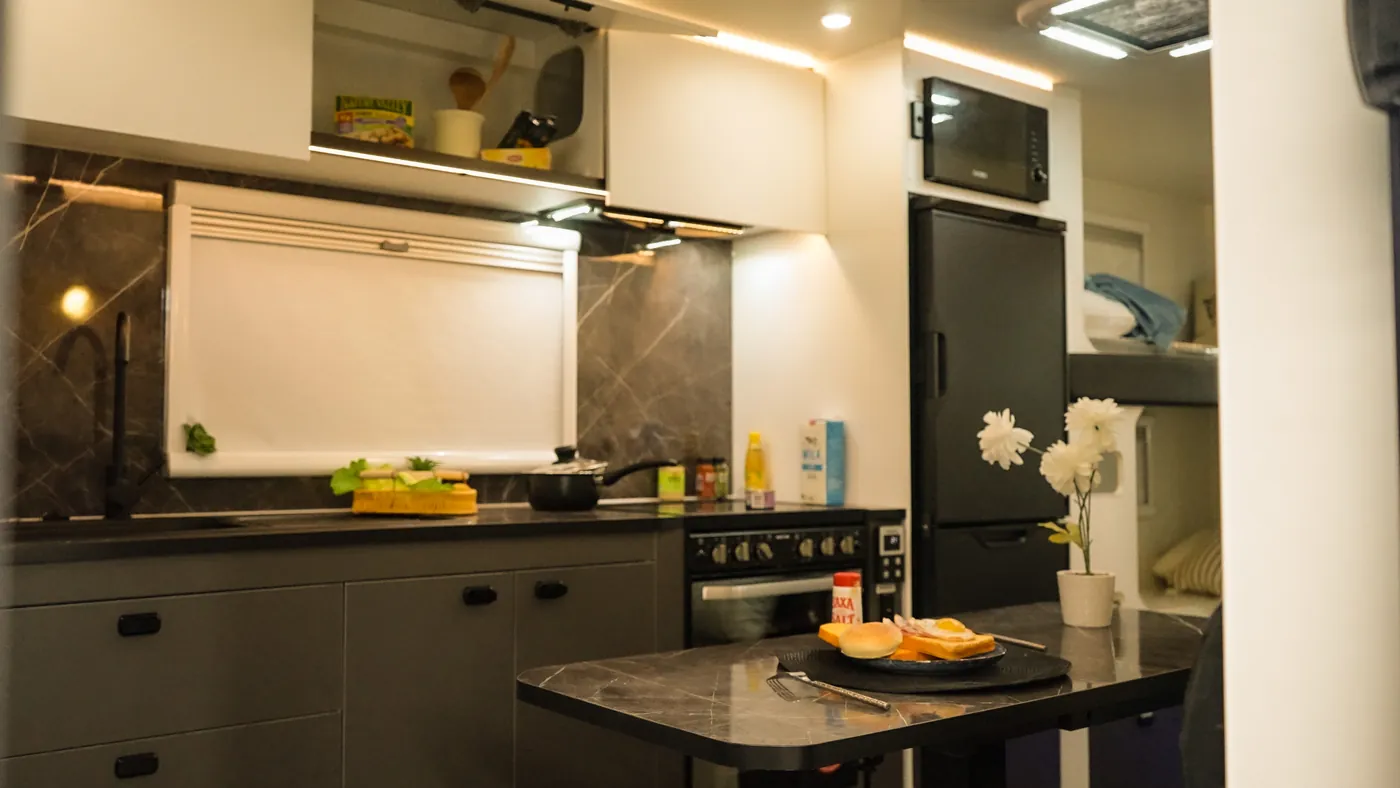

Good food begins with a kitchen that feels ready for you.
A pull-out basket beneath the cooktop keeps knives and tableware organised, close to where you prepare a meal.

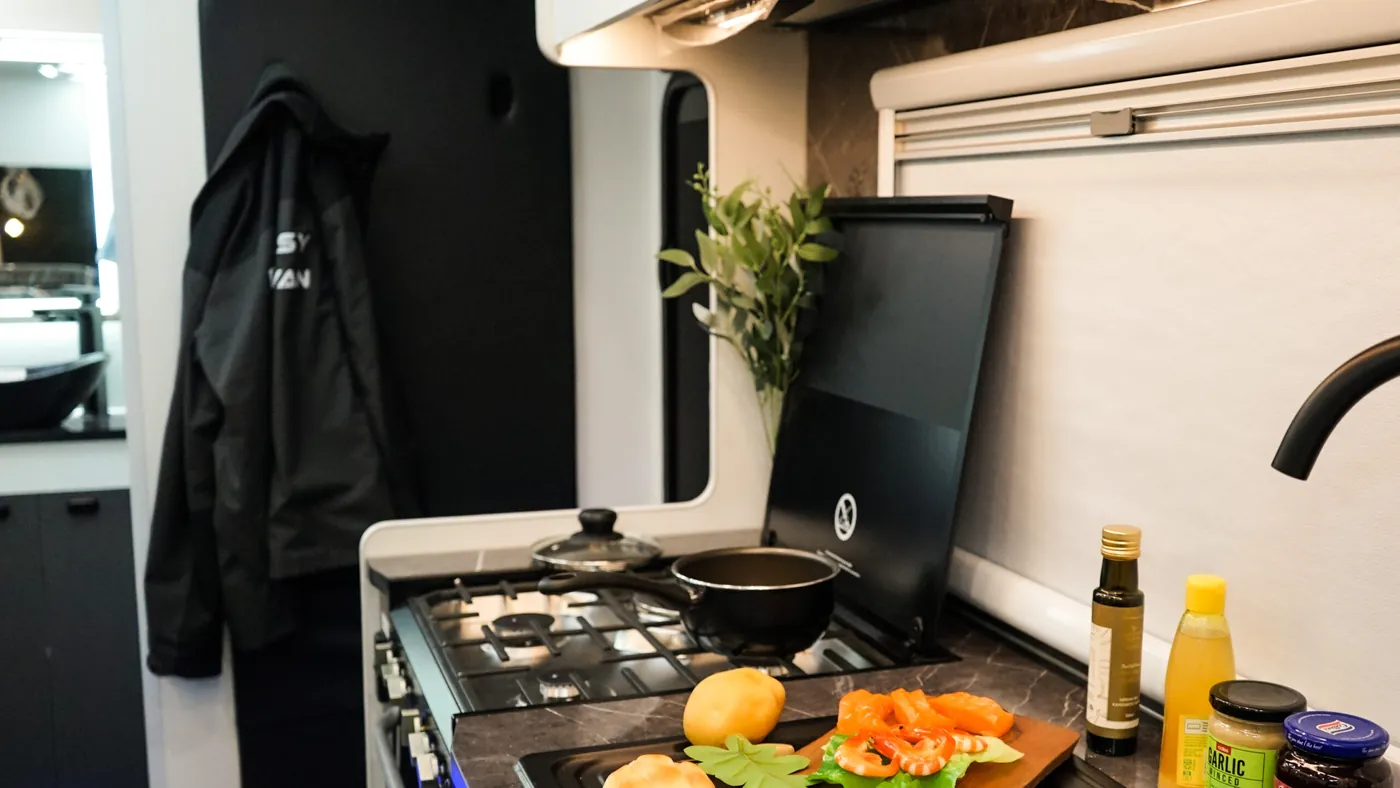

A four-burner cooktop with separate grill and oven compartments gives you more ways to prepare a meal, while the 20L microwave and rangehood support the everyday routine.

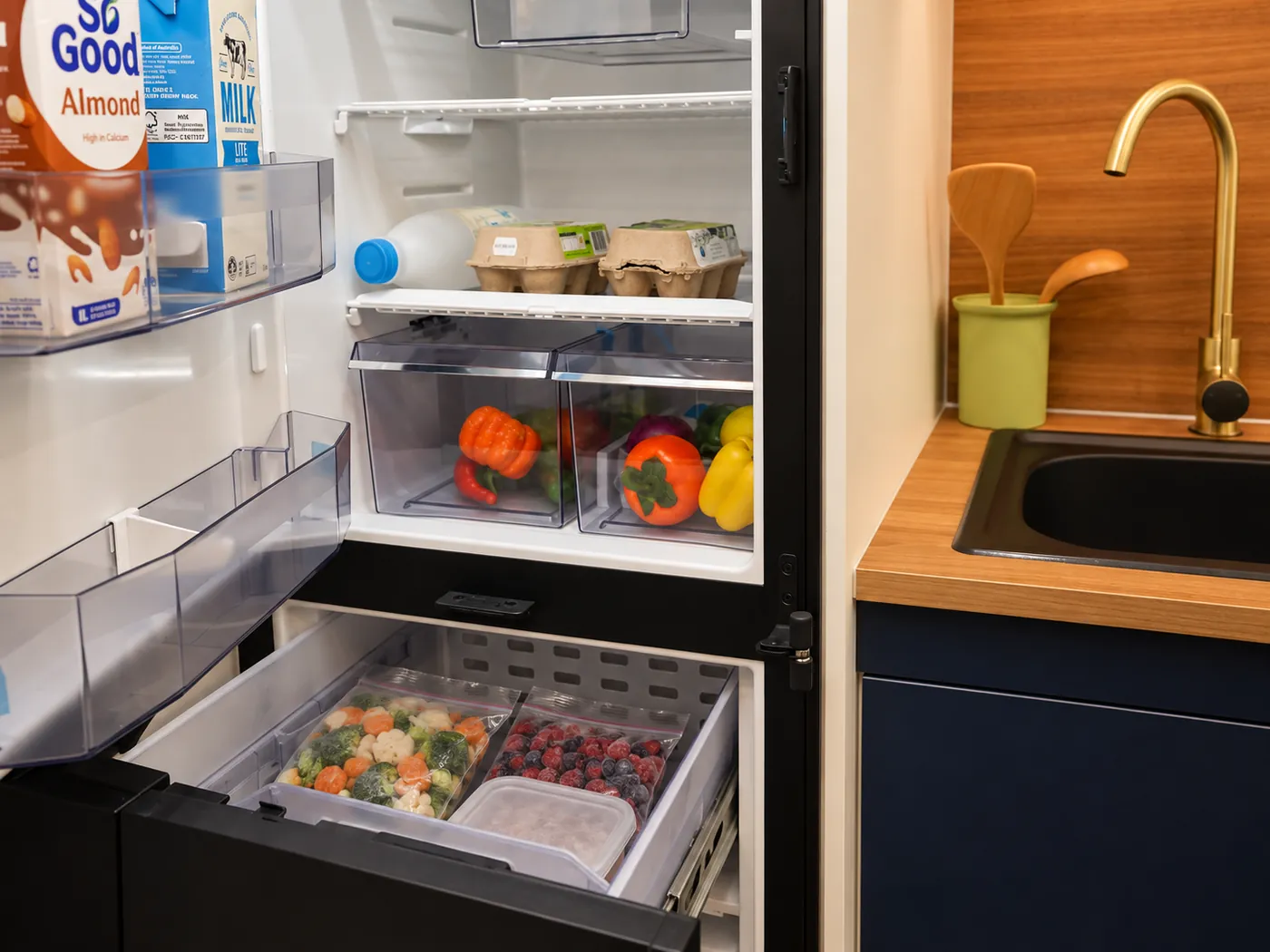

Keep favourite ingredients and chilled drinks close at hand, with a separate pull-out freezer below for frozen favourites. From a leisurely breakfast to a drink before dinner, enjoy the little rituals that make a day feel your own.
01 / 03
A fresh change, close to hand.

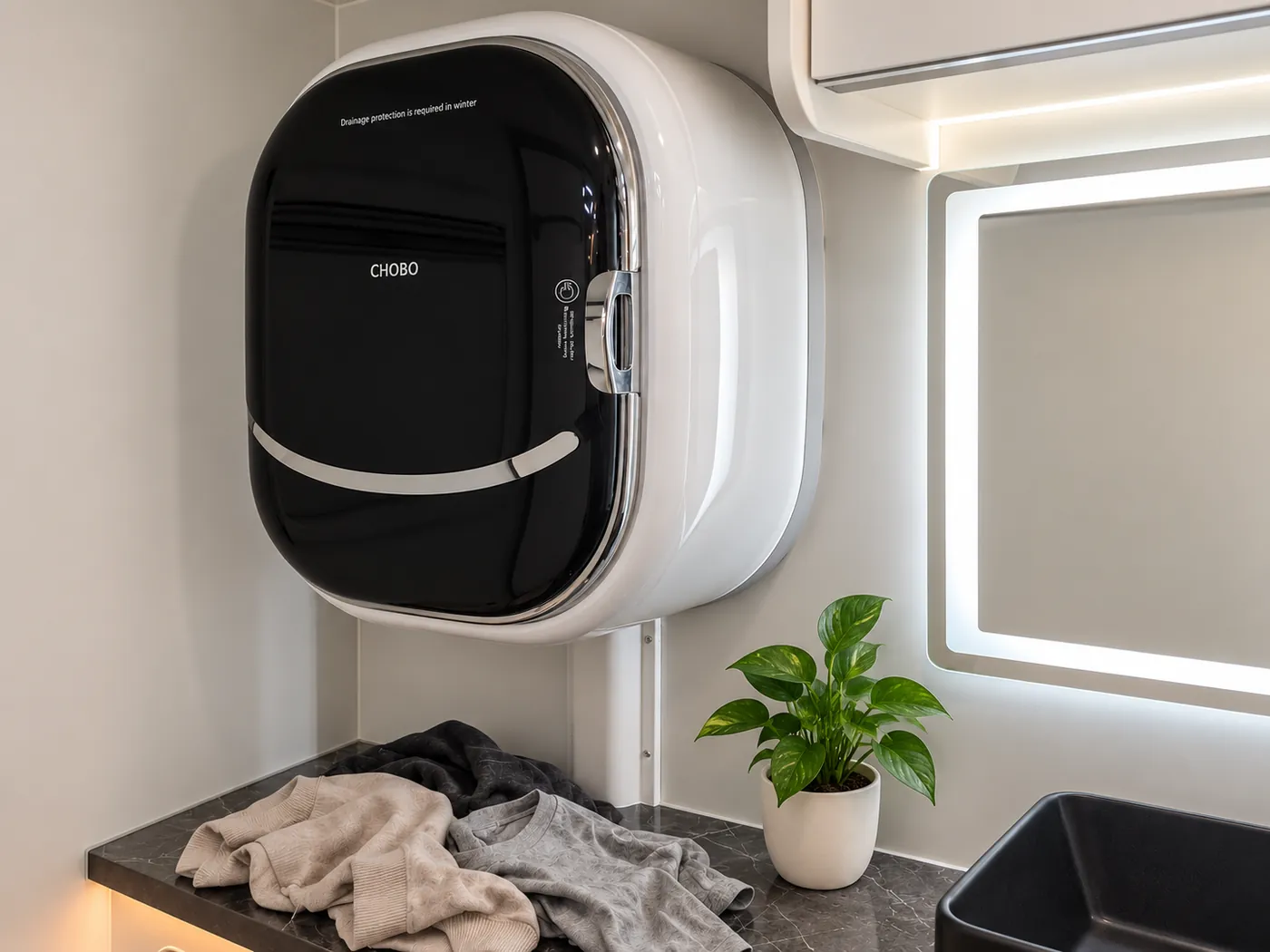

An onboard washing machine keeps fresh clothes part of the journey, bringing the ease of your own laundry routine into life on the road.
Fresh clothes and thoughtful bathroom details bring ease to your daily rituals.
An onboard washing machine keeps fresh clothes part of the journey, bringing the ease of your own laundry routine into life on the road.

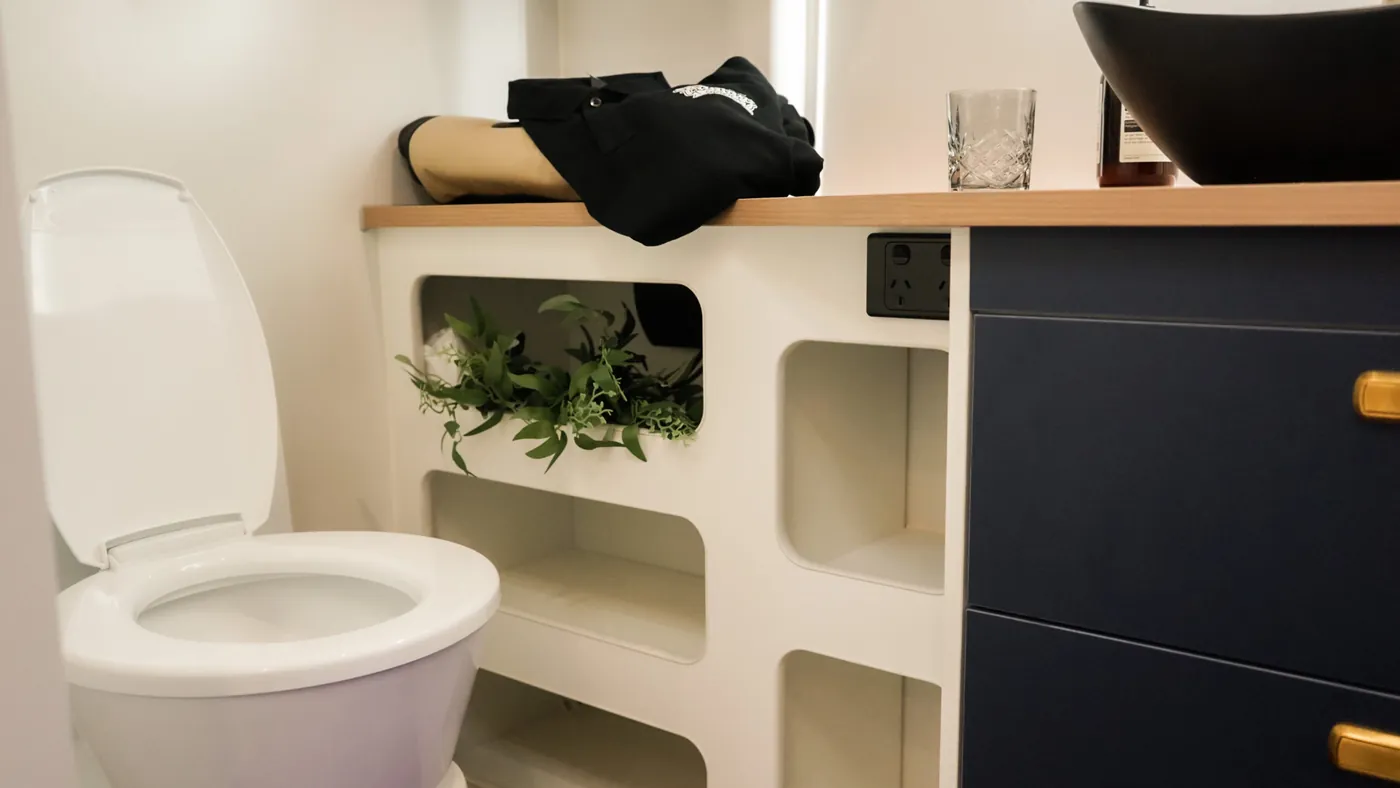

A Dometic Swivel Cassette toilet comes as standard, and an illuminated bathroom mirror brings light to the space where you get ready.

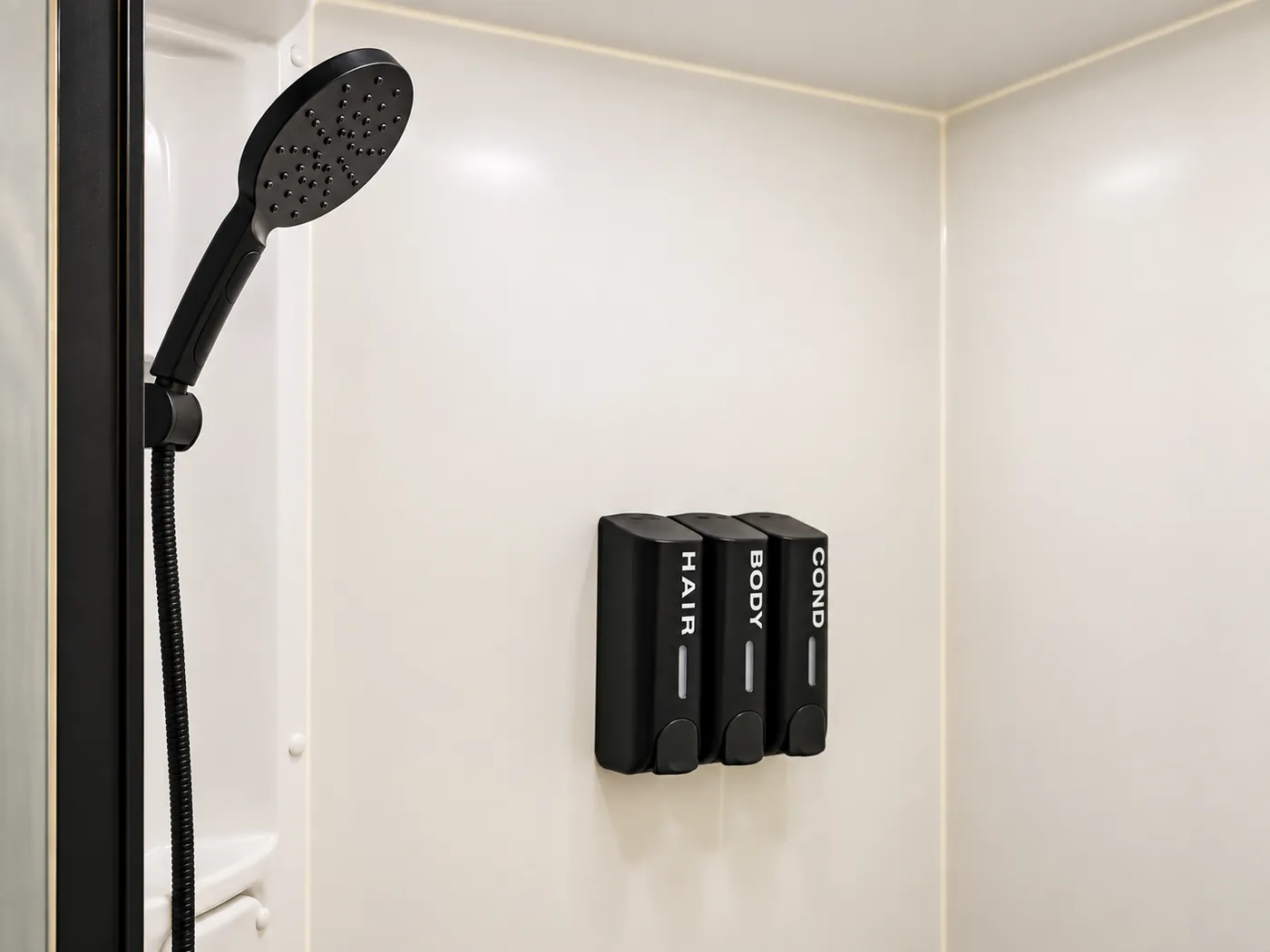

Three dedicated containers in the shower hold shampoo, conditioner and body wash. Each has its place, so even a familiar daily ritual feels composed and considered on the road.
01 / 03
A softer place to lean back.

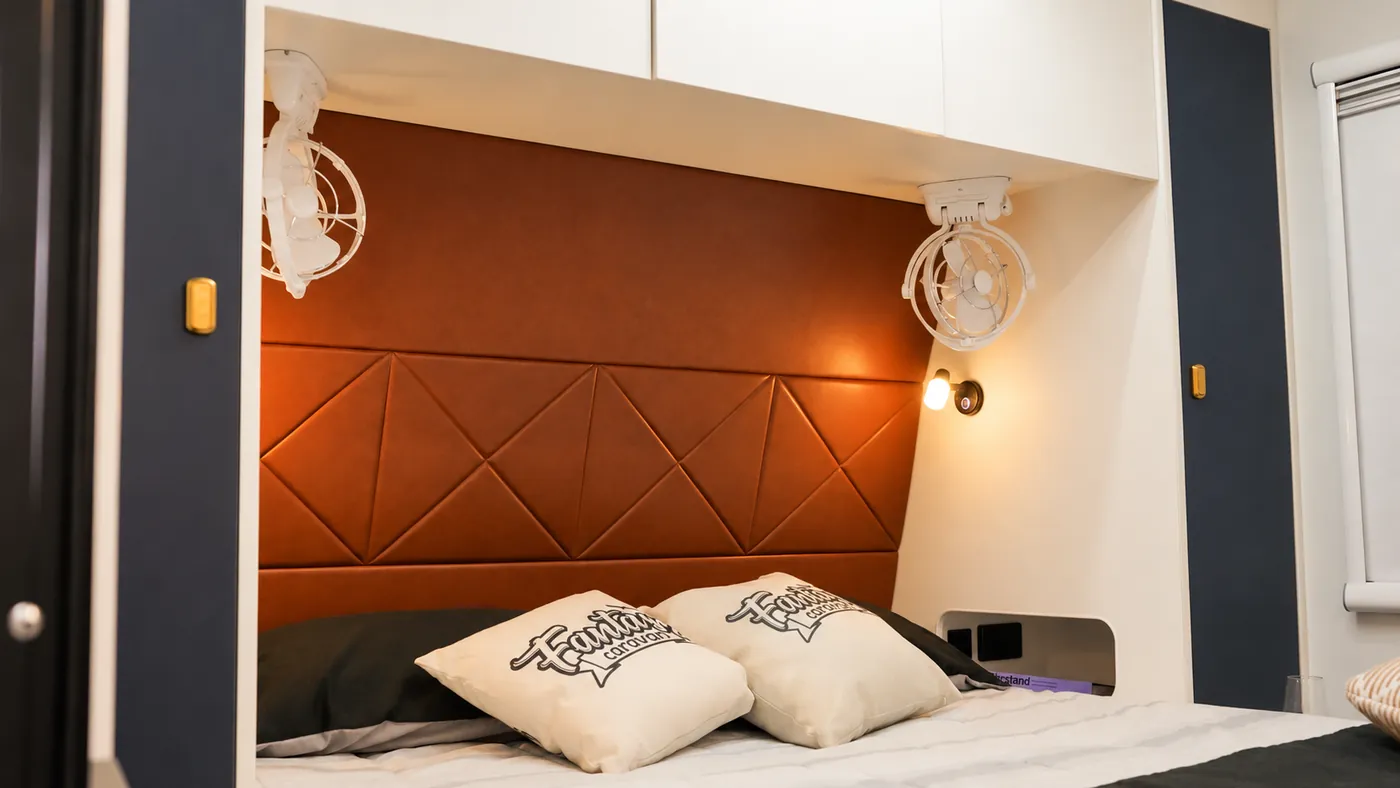

Soft padding behind the bed creates a comfortable place to lean back, with a welcoming touch against your skin. Its upholstered finish adds warmth and texture to the bedroom, inviting you to linger a little longer.
Set the temperature, settle the lights and make the evening your own.
Soft padding behind the bed creates a comfortable place to lean back, with a welcoming touch against your skin. Its upholstered finish adds warmth and texture to the bedroom, inviting you to linger a little longer.

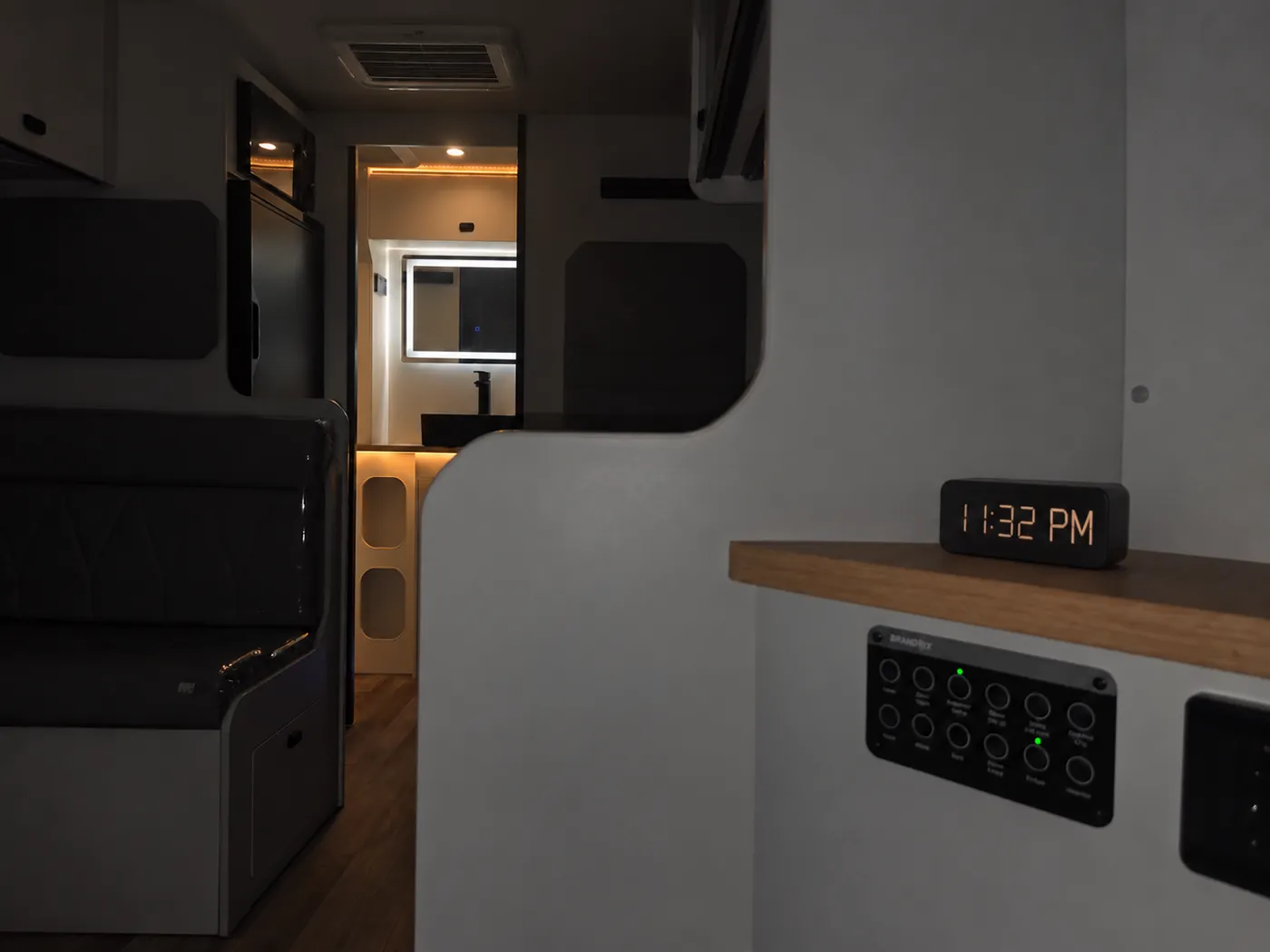

Already settled in bed? The bedside master switch lets you turn off the caravan’s lighting—including the bathroom light at the other end—without getting up again.

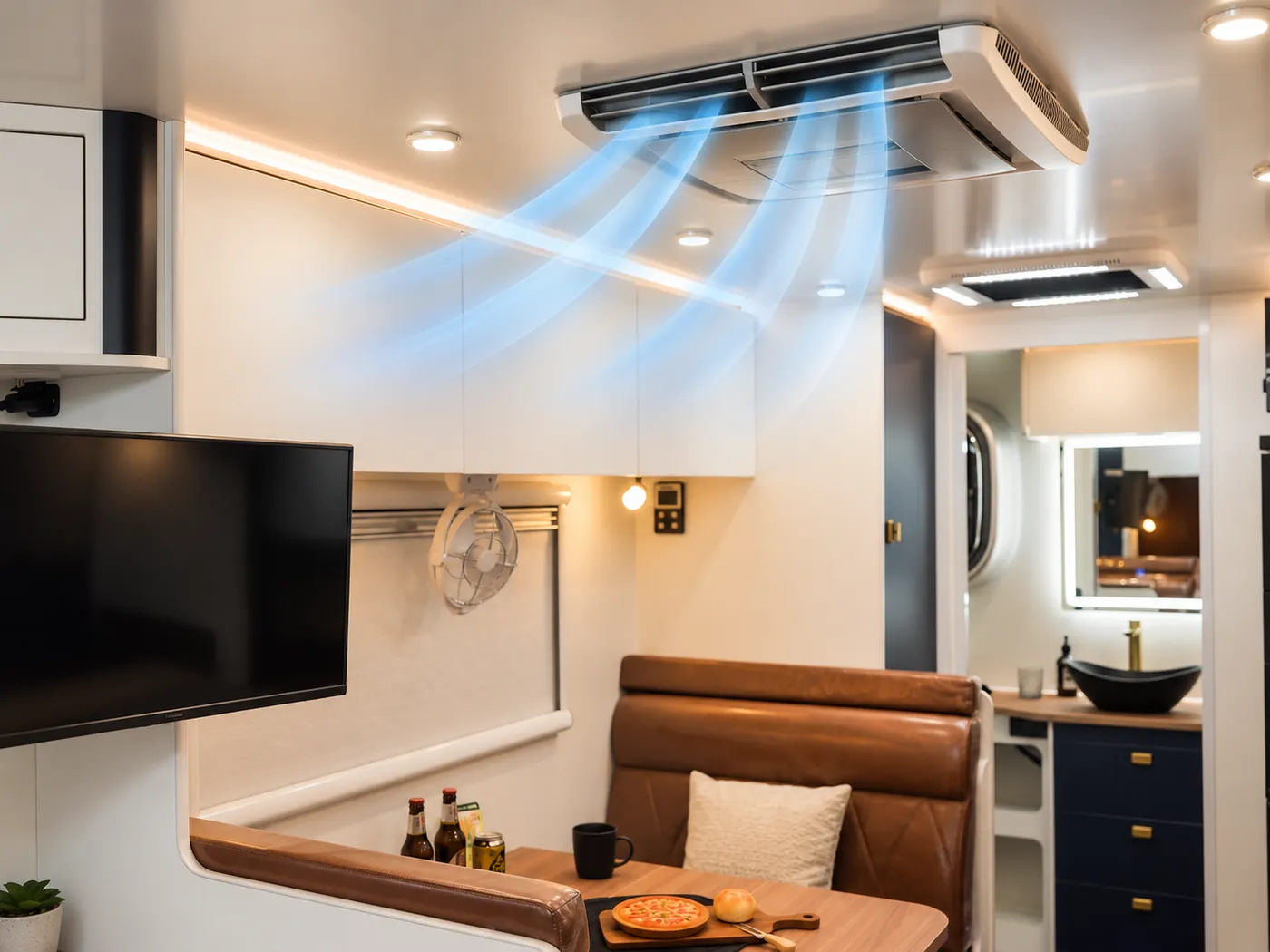

The MYCOOLMAN rooftop inverter air conditioner provides heating and cooling, while three swivel fans help circulate air around the interior.
See how the space works for you.Explore the layout in person. · 1300 096 615
Floor Plan
$5,000OFF
Sleeps 2
175L Fridge
600AH Lithium
800w Solar
Detailed Specifications
| ATM | 2800 KG |
| Tare Mass | 2250 KG |
| Ball Weight | 210 KG |
| Length | 7440(mm) |
| Width | 2380(mm) |
| Height | 3100(mm) |
Chassis
- Chassis: 6”
- Drawbar: 6”
- Hitch: CRUISEMASTER DO35
- Jockey Wheel: 8″ Swing Up
- Suspension: Coil 2.8T with PEDDERS Shocks
- Tyres: 265/75 R16 MT
- Bumper Bar: 2-arm
- Brake: 12” Electric
- Step: Electric Single
- Stabiliser Legs: 4
- Gas Bottle Holder: 2 x 9kg
- Jerry Can Holder: 2
Appliances
- Air Conditioner: MYCOOLMAN Rooftop Reverse Cycle
- TV Unit (w/ TV Arm): 24” Smart TV
- TV Antenna: Omni-Directional
- Speakers: Fusion 2 x Internal/2 x External
- Stereo: Fusion RA60
- Hot Water System: FOGATTI Instant
- Fridge: Thetford 175L Compressor
- Microwave: 20L
- Stove: THETFORD Oven K1520
- Rangehood: Yes
- Swivel Fan: 3
- Smoke Alarm & Fire Extinguisher: Yes
Electrical
- Battery Management System: Renogy REGO
- DCDC Charger: RENOGY 50A
- Solar Charger: RENOGY 30A x 2
- Battery: 2 x 300AH Lithium Battery
- Inverter Charger: Renogy 3000W/150A
- Solar Panel: 800 W
- Front Work Light: No
- Annexe Lights: Yes
- Ambient Lighting: Yes
- Trailer Plug: 7-pin Flat with Anderson
- 240v Outlet: Multiple
- Reverse Camera: Wireless with Screen
Plumbing
- Fresh Water Tank: 3 x 75L (225L)
- Grey Water Tank: 75L
- Internal Sink: Yes
- Water Pump: 1 x 12v
- Toilet: Swivel Cassette
- External Shower: Yes
- Kitchen Sink: Yes
External
- Awning: Manual Pull Out
- Windows: Flat Double Glazed
- Roof Hatch: 1 x Medium + 1 x Small
- Picnic Table: Yes
- Ensuite Hatch: 2 x 12V Power Fan
- Insulation: XPS Foam
- Body Protection: Yes
- Tunnel Boot: Yes
- Toolbox: Yes
- Stone Guard: No
Internal
- Sleeps: 2
- Mattress: Queen (1520*1860mm)
- Main Door Cover: No
- Vanity Sink: Yes
- Upholstery: Leatherette
- Benchtop: Postform
- Seating: Cafe seat
- Shower: Fibreglass
OFF-GRID ENERGY & CONTROL
Power for the comforts you choose.
Keep the comforts of the day close, plugged in or off-grid: check your energy at a glance, replenish it from sunlight or the tow vehicle, and set multiple functions in one action. The Renogy REGO system, 600Ah lithium, 800W solar and 3000W inverter provide the hardware behind that experience.
Keep the day moving comfortably.
Capacity for the way you want to live.
See it. Set it. Stay in the moment.
Four standard 200W solar panels provide 800W in total, while an Anderson connection lets you add a portable solar panel when needed.
The Renogy 50A DC–DC charger with MPPT replenishes the batteries while travelling. Separate Anderson connections support vehicle and portable-solar charging.
Two standard 300Ah lithium batteries provide 600Ah in total. An opening exterior cover keeps inspection and maintenance access straightforward.
A Renogy 3000W inverter is standard, forming the high-output link between the battery bank and onboard AC power.
View battery level and charging status in real time, then control the van’s lighting from the app.
The standard Advanced control system supports customised scenes such as arriving or leaving, and can bring air-conditioning control into the same routine.
OFF-ROAD & OFF-GRID
The freedom to go. The comfort to stay.
Built for changing roads, considered arrivals and the comforts that travel with you.
01 / 02
A steadier ride.

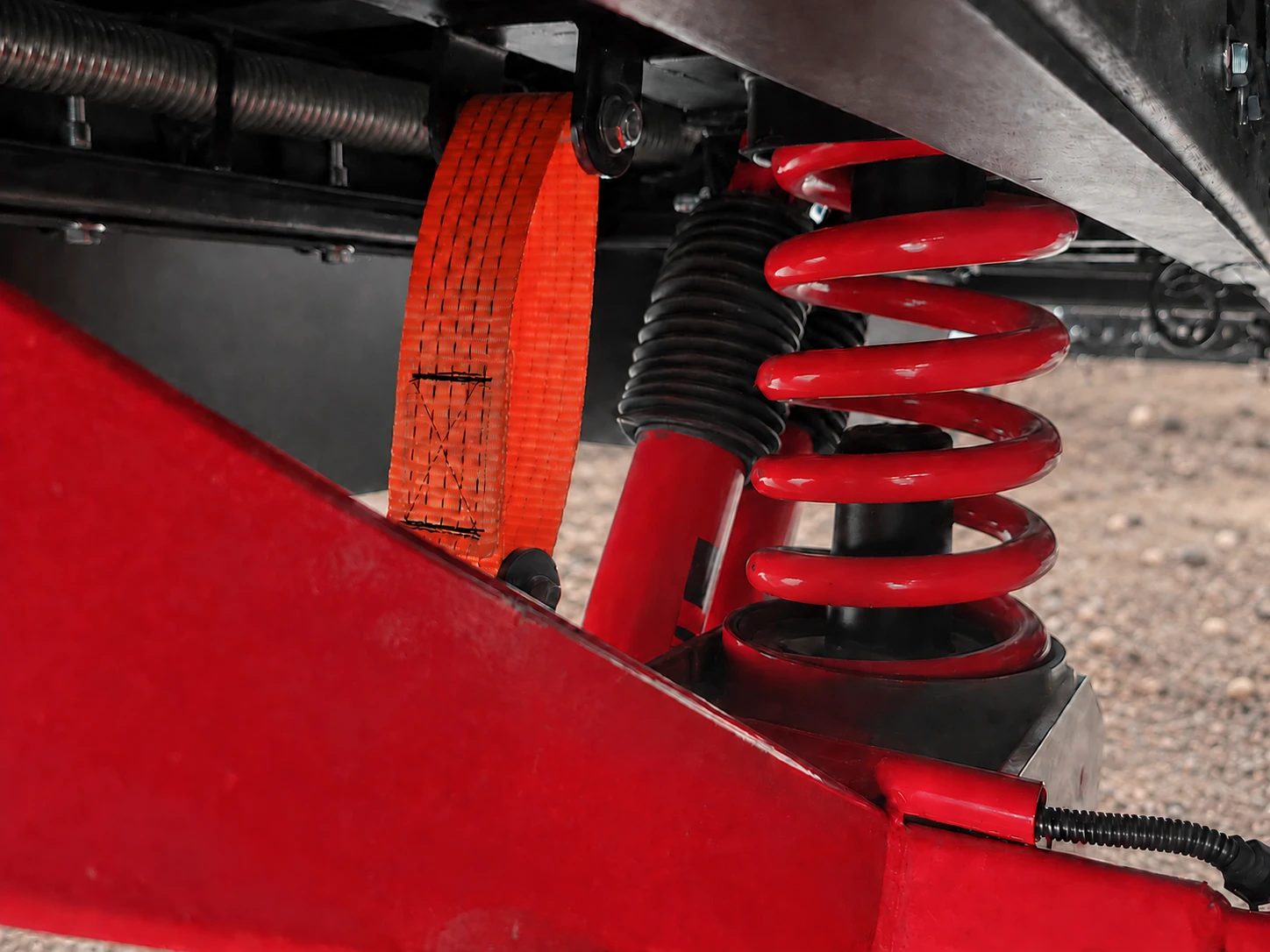

Coil-spring independent suspension works with eight PEDDERS shock absorbers to help Horizon ride more steadily as surfaces change.
A more composed journey begins beneath the body.
Coil-spring independent suspension works with eight PEDDERS shock absorbers to help Horizon ride more steadily as surfaces change.

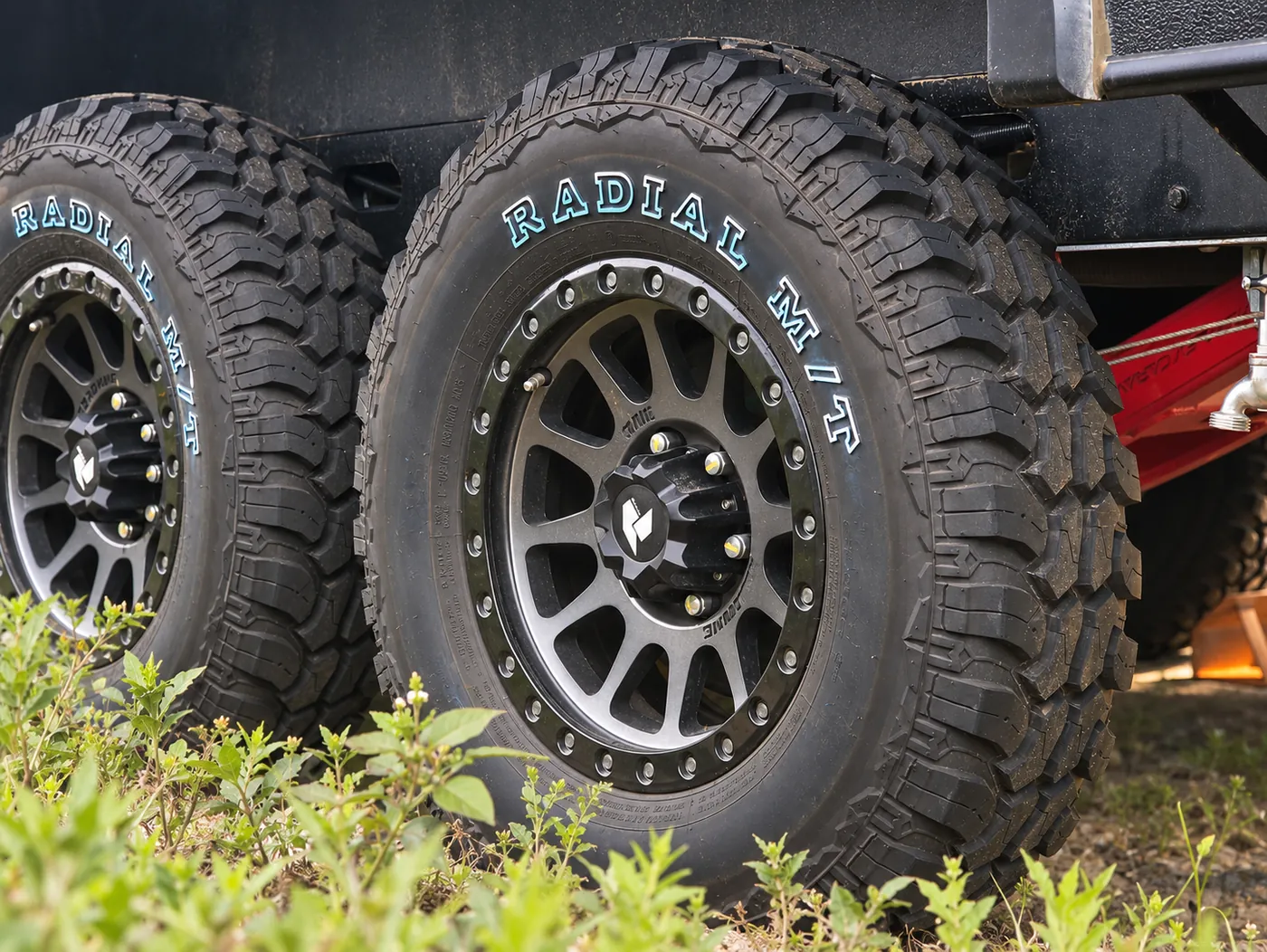

Standard 265/75 R16 MT tyres on 16-inch alloy wheels give Horizon a wheel and tyre setup intended for more than smooth bitumen.
01 / 02
A connection made for the route.

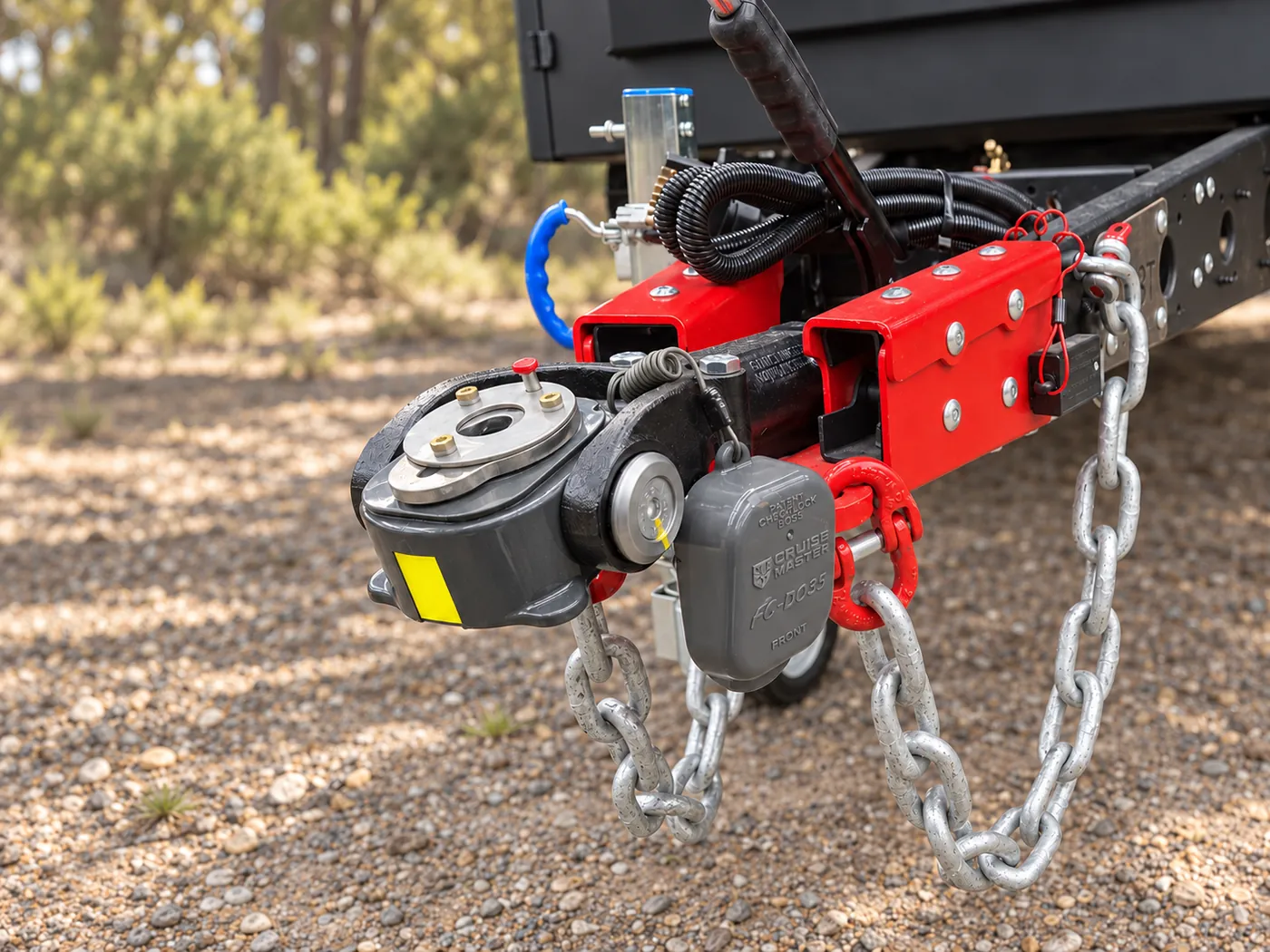

At the drawbar, the Cruisemaster DO35 off-road coupling connects Horizon to the tow vehicle for journeys that may take you beyond sealed roads.
Thoughtful details carry through to the moment you unhitch.
At the drawbar, the Cruisemaster DO35 off-road coupling connects Horizon to the tow vehicle for journeys that may take you beyond sealed roads.

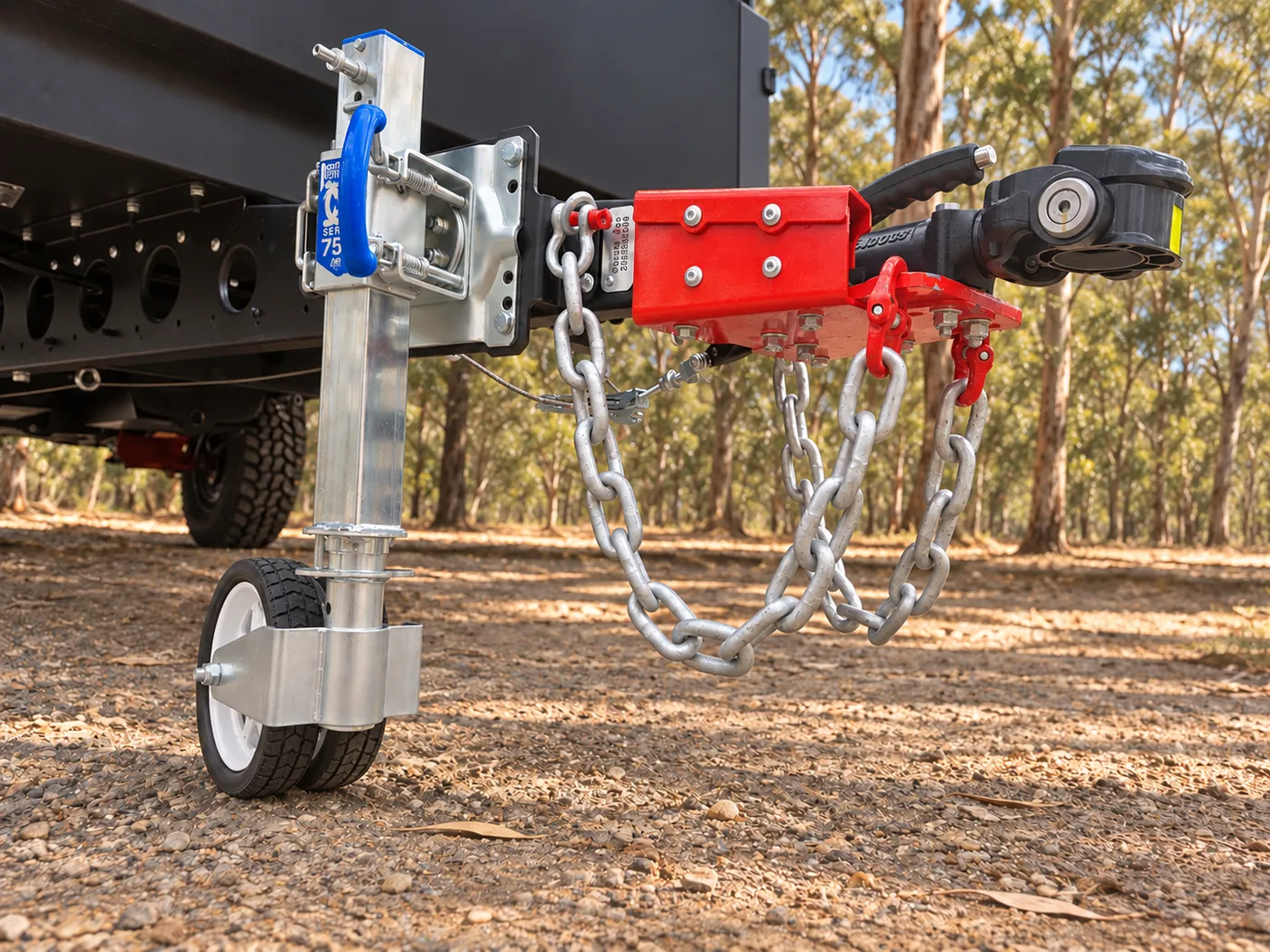

When you unhitch, the ARK XO750 jockey wheel supports the front of the caravan; standard stabiliser legs help steady it once you settle at camp.
01 / 02
Water for everyday living.

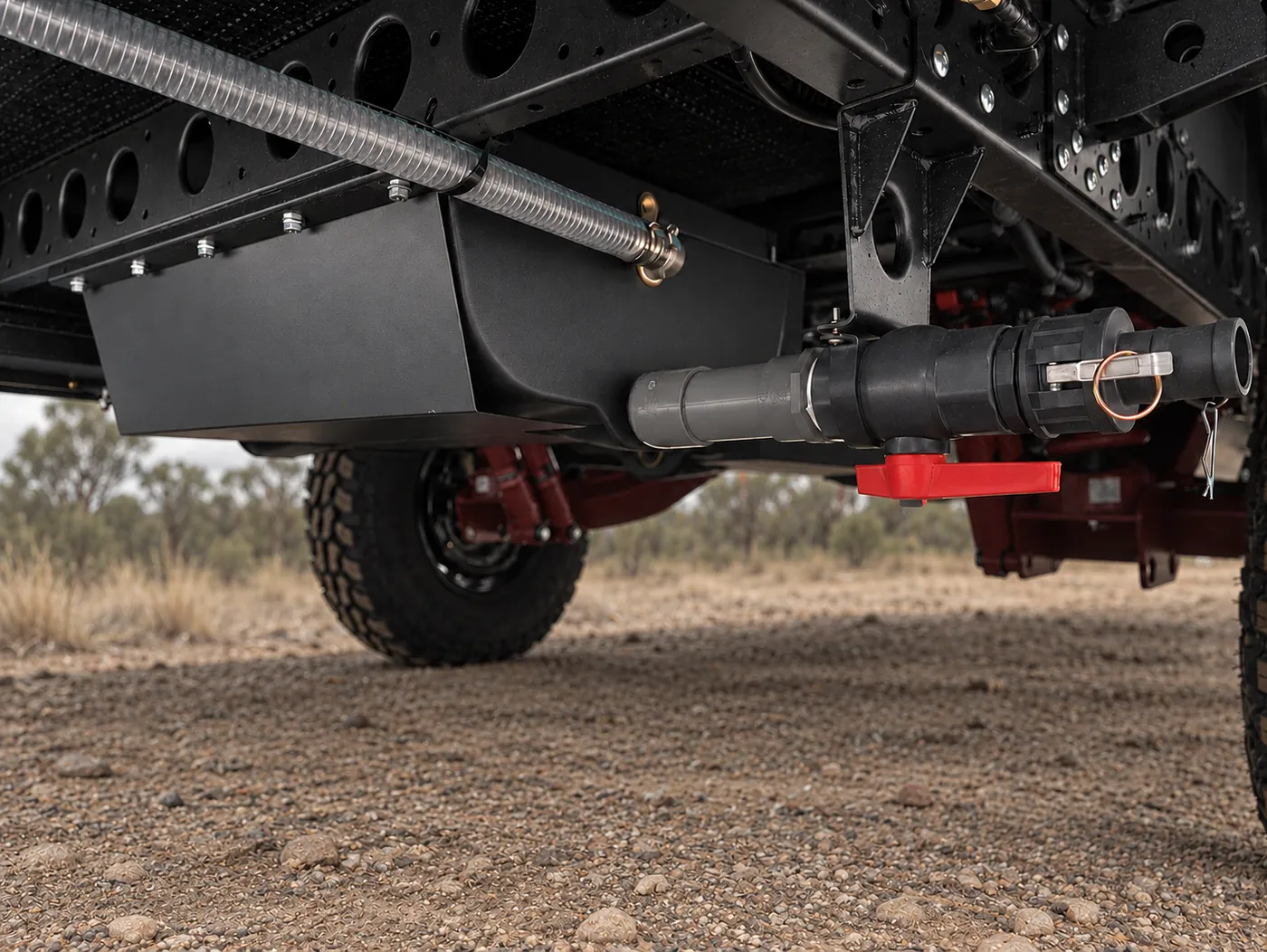

Tank guards help shield the water tanks from stones and road debris, while a cam-lock grey-water outlet makes connecting a drainage hose simple and secure. With 225L of fresh water and a separate 75L grey-water tank, everyday routines can come along.
Water and hot water keep familiar routines close.
Tank guards help shield the water tanks from stones and road debris, while a cam-lock grey-water outlet makes connecting a drainage hose simple and secure. With 225L of fresh water and a separate 75L grey-water tank, everyday routines can come along.

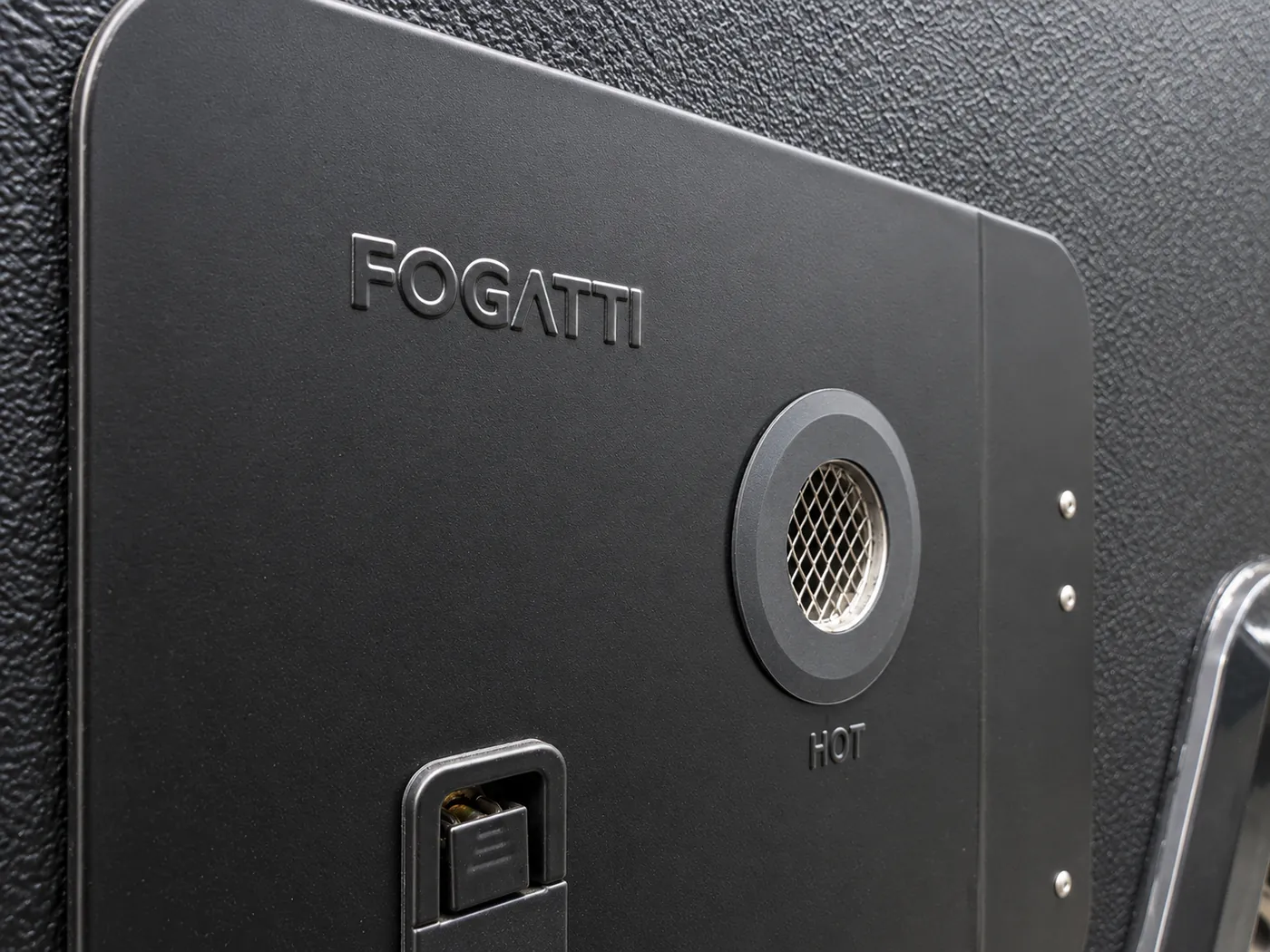

The Fogatti instant hot-water system heats water as needed rather than drawing from a preheated storage tank, bringing a familiar comfort to the end of the day.
CONSTRUCTION
Refinement begins beneath the finish.
From the structure beneath the finish to the details you see and touch, Horizon brings a considered approach to the space around you.
01
A composed finish, front and rear.

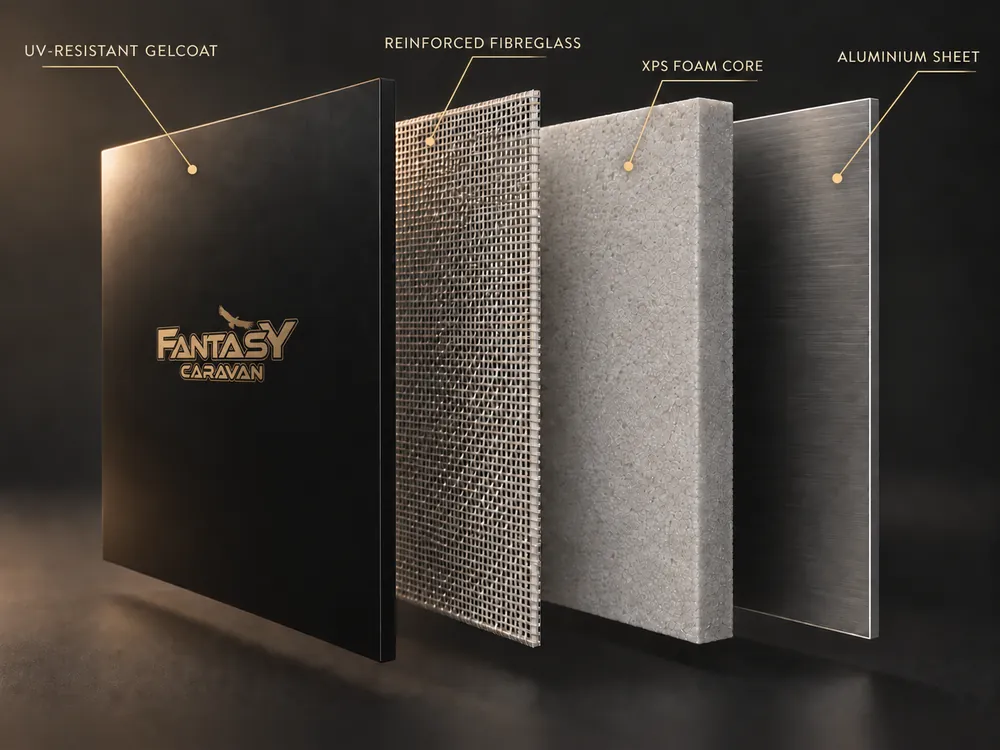

One-piece sandwich panels form Horizon’s front and rear, with no panel joins across those sections. The uninterrupted surfaces lend the exterior a clean, composed look—an understated detail you notice before stepping inside.
- 01UV-resistant gelcoat
- 02Reinforced fibreglass
- 03XPS foam core
- 04Aluminium sheet
02
Considered materials for the space within.
Horizon’s furniture uses a lightweight, low-emission ENF-grade substrate. In a space you live in every day, what sits beneath the finish deserves the same attention as what you see.
03
Refinement you can see and feel.

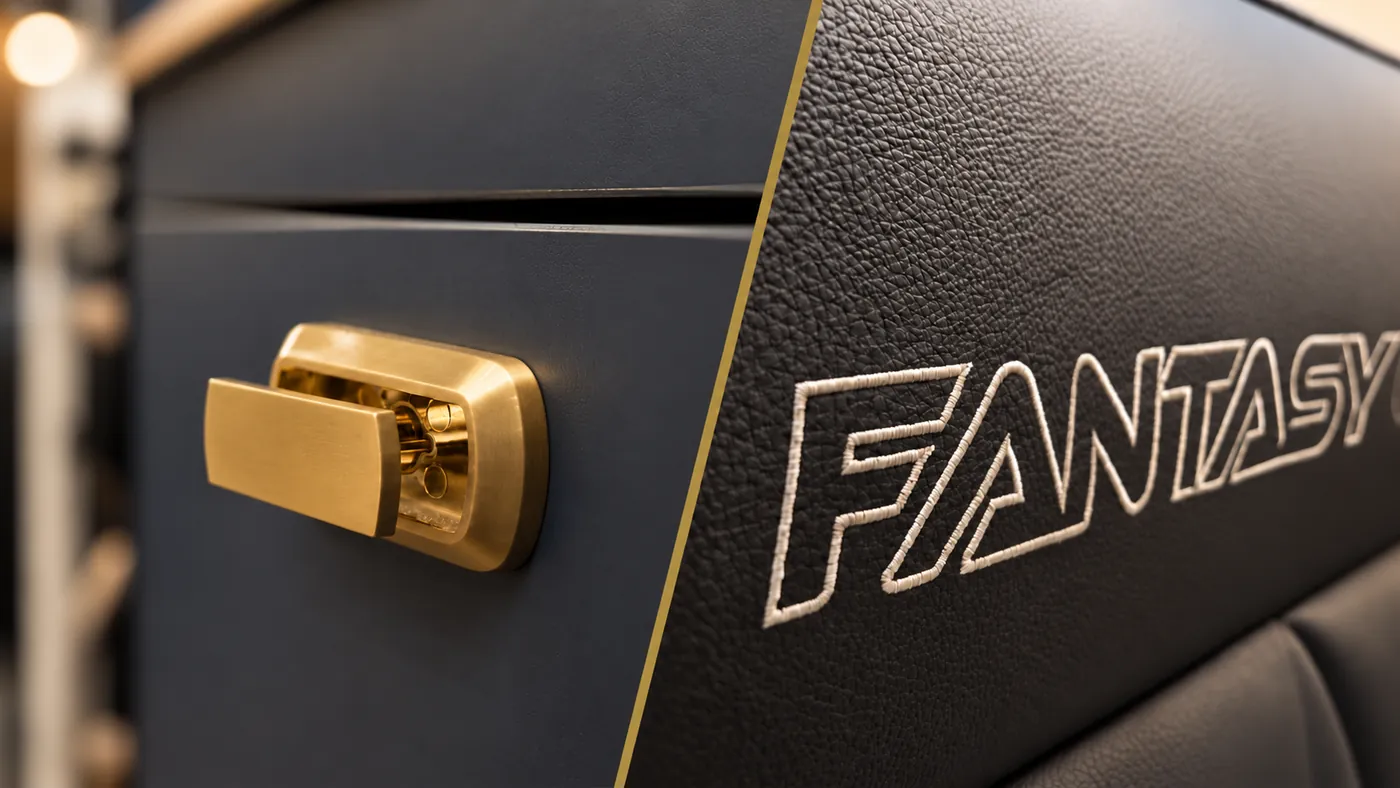

Soft-touch microfibre upholstery brings an inviting feel to the seating, while the hardware adds a considered finishing touch. Together, these tactile and visual details give the interior a quietly distinctive character.
MAKE IT YOURS
Build your own Horizon.
Choose your Horizon model, interior colour and add-ons in our build tool, then send your build to our team.
LIVING WITH IT
Make the everyday feel exceptional.
Small conveniences, considered finishes and choices that make Horizon feel like your own.
01
A place for the little extras.

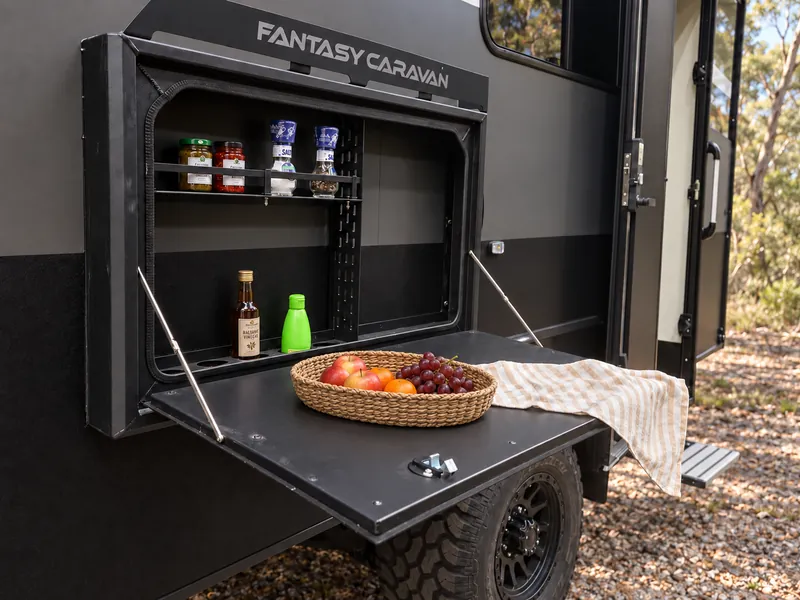

The side picnic table includes a metal storage rack with openings for taller bottles, helping them sit more securely while keeping more tabletop space free.
02

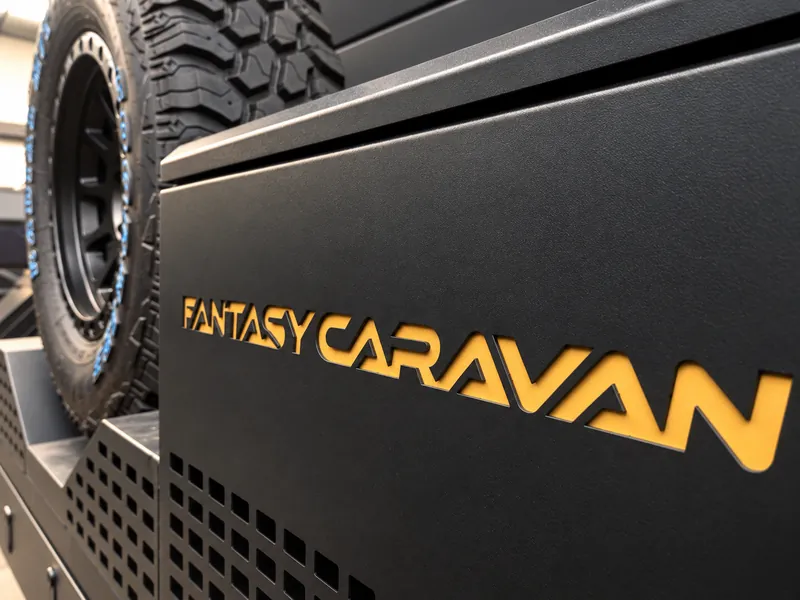

A signature in black and gold.
Gold accents bring warmth to Horizon’s black exterior, giving the caravan a distinctive finish that feels considered from the first glance.
03
Let the evening glow.

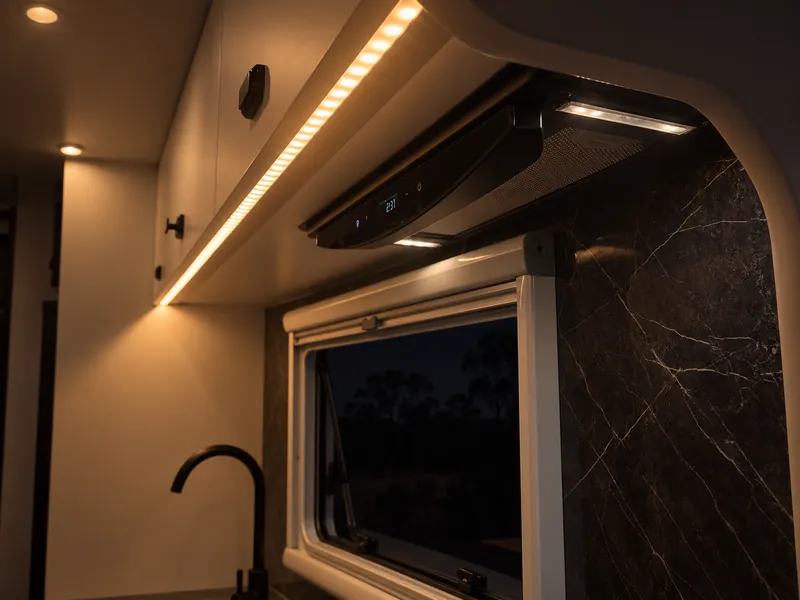

An ambient strip below the kitchen softens the interior, while a long blue LED in the main door handle marks the entry.
04
A view behind, neatly integrated.

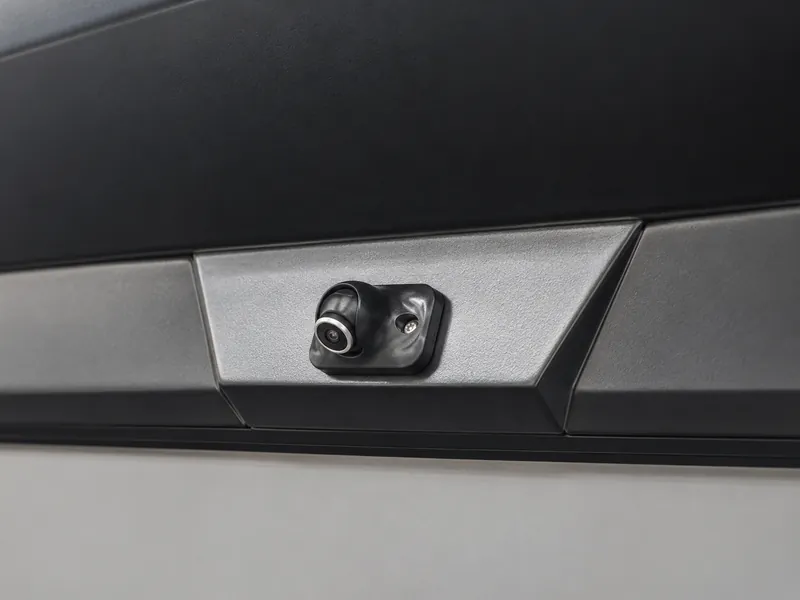

A rear-facing camera sits neatly within the spoiler design, adding a view behind the caravan while keeping the exterior finish composed.
05

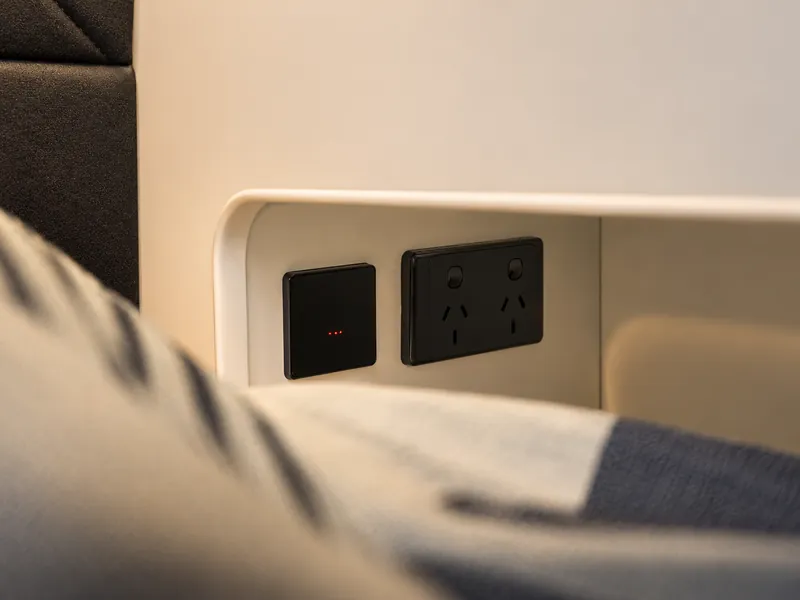

Keep the essentials close.
At the bed and sofa, 240V and 12V outlets keep charging points close to the places where you relax.
06
Room for more, out of sight.

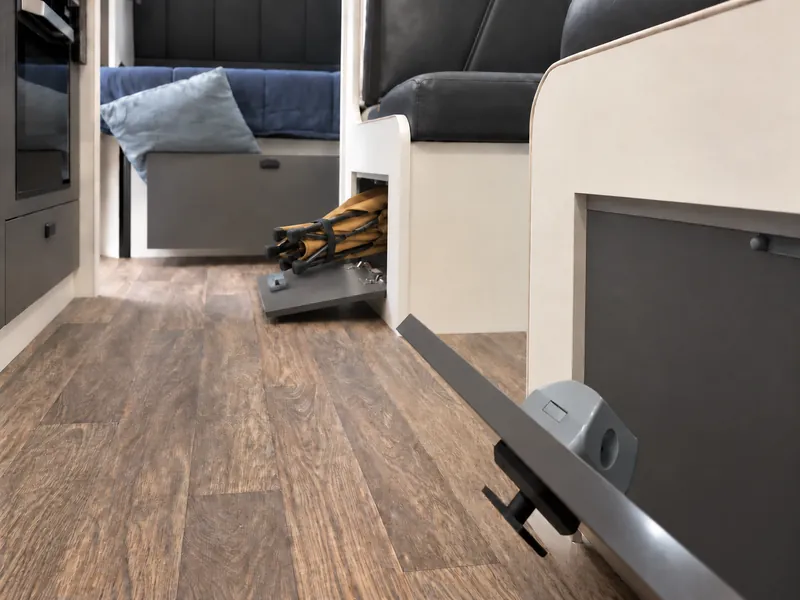

Storage beneath the sofa and bed gives everyday belongings a place of their own, leaving the living space feeling less cluttered.
07
Space for your way of travelling.

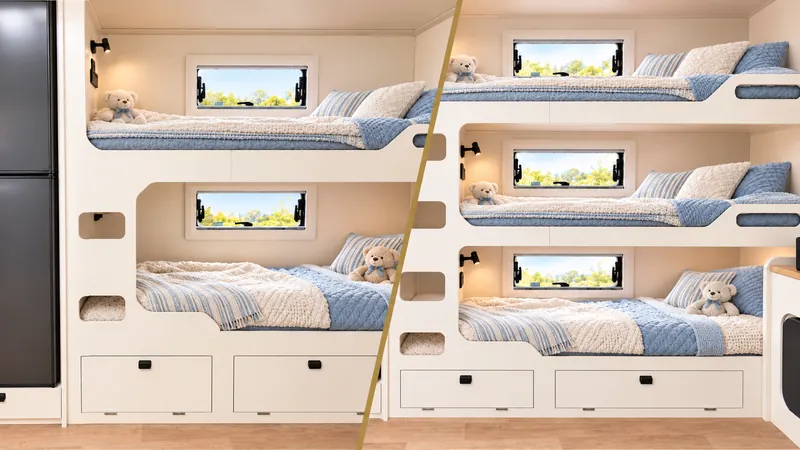

Choose from the available Horizon layouts to find sleeping and living spaces that suit the way you travel.
Explore layouts →
08
Choose your own sense of style.
Choose from four interior colour schemes to shape the atmosphere around your own sense of style.
Build your Horizon →FAQ
Questions before you make it yours.
Clear answers about the standard equipment and choices that shape the everyday Horizon experience.
The Horizon Series comes in three layouts: Horizon 17.6, Horizon 19 and Horizon 22F. Compare them in the floorplans section above, or request the brochure for the model you prefer.
The standard setup gives you a generous base for off-grid power: 600Ah of lithium batteries, 800W of solar, a Renogy 3000W inverter and a Renogy 50A DC–DC charger with MPPT.
Yes. The side-mounted slide-out kitchen lets you keep cooking and preparation outdoors, with a three-burner gas cooktop and sink together in one unit.
At a glance, you can view battery level and charging status, then control the van’s lighting without moving from where you are.
Horizon carries 225L of fresh water across three 75L tanks, with a separate 75L grey-water tank for used water.
Yes. Four interior colour schemes let you choose the atmosphere that feels most like your own space.
The Horizon Series is Fantasy Caravan’s flagship range of multi-terrain, off-grid caravans, created for travellers who want refined everyday comfort, generous onboard energy and the freedom to enjoy the details around them.
