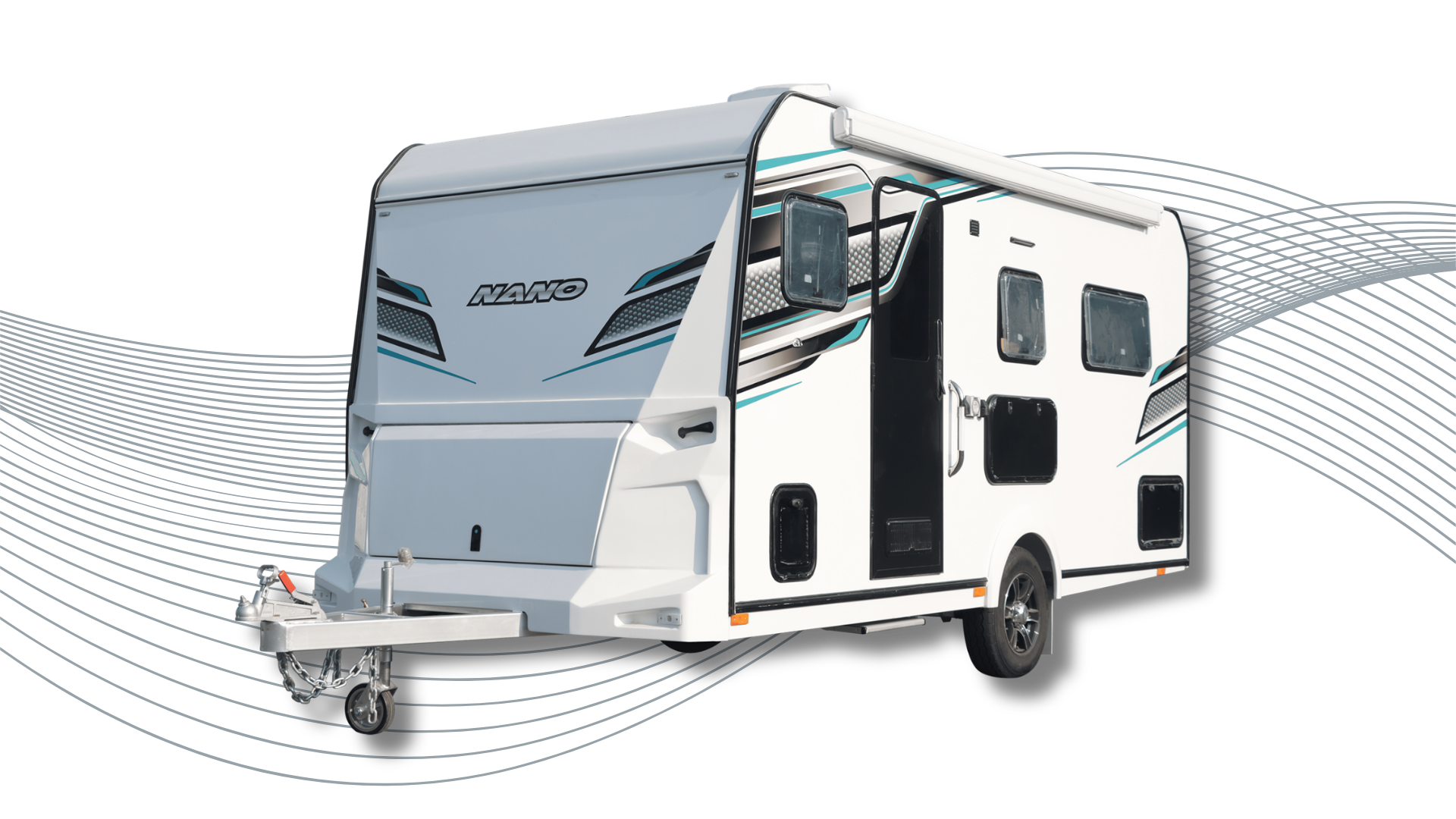

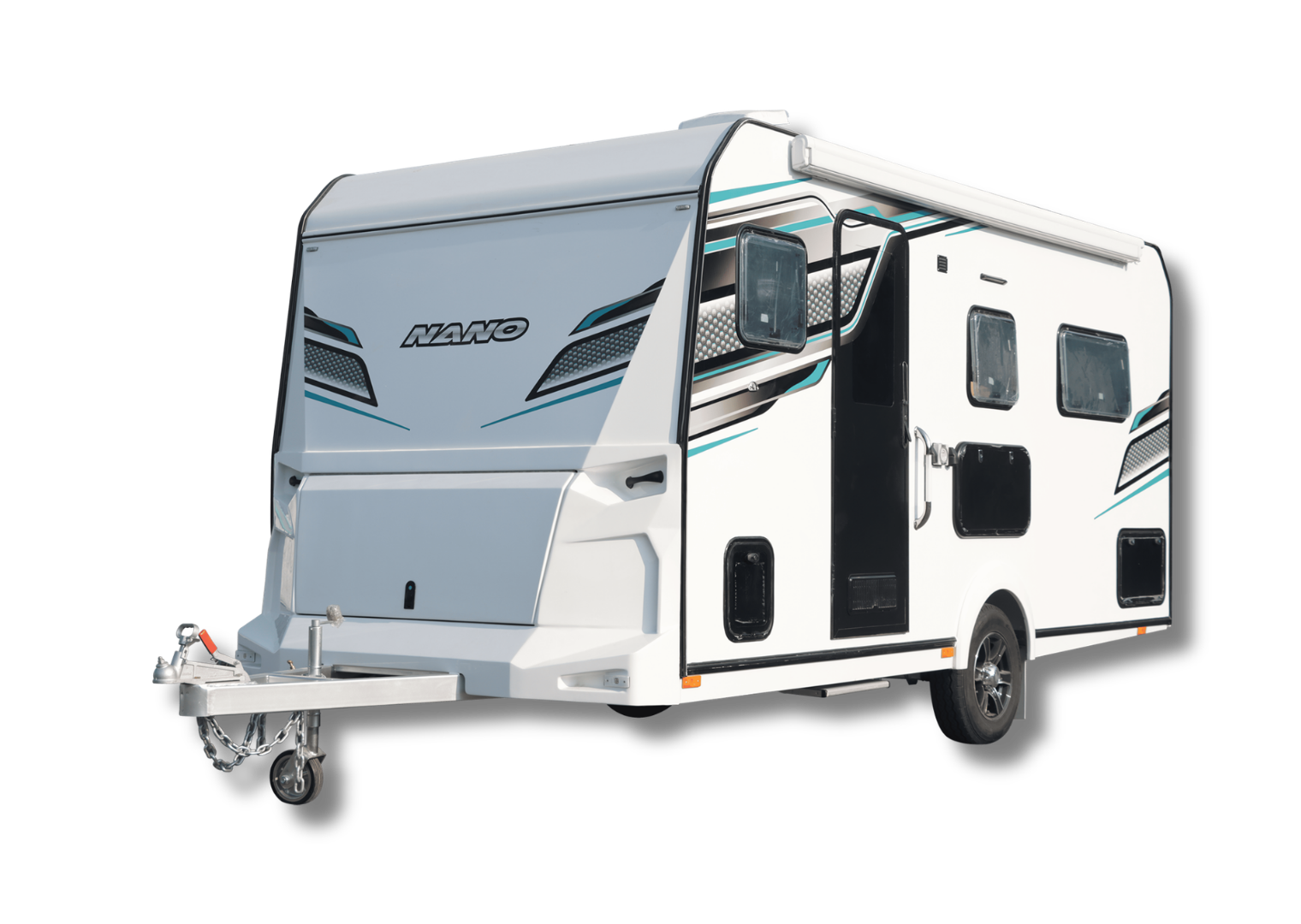

Nano 16F

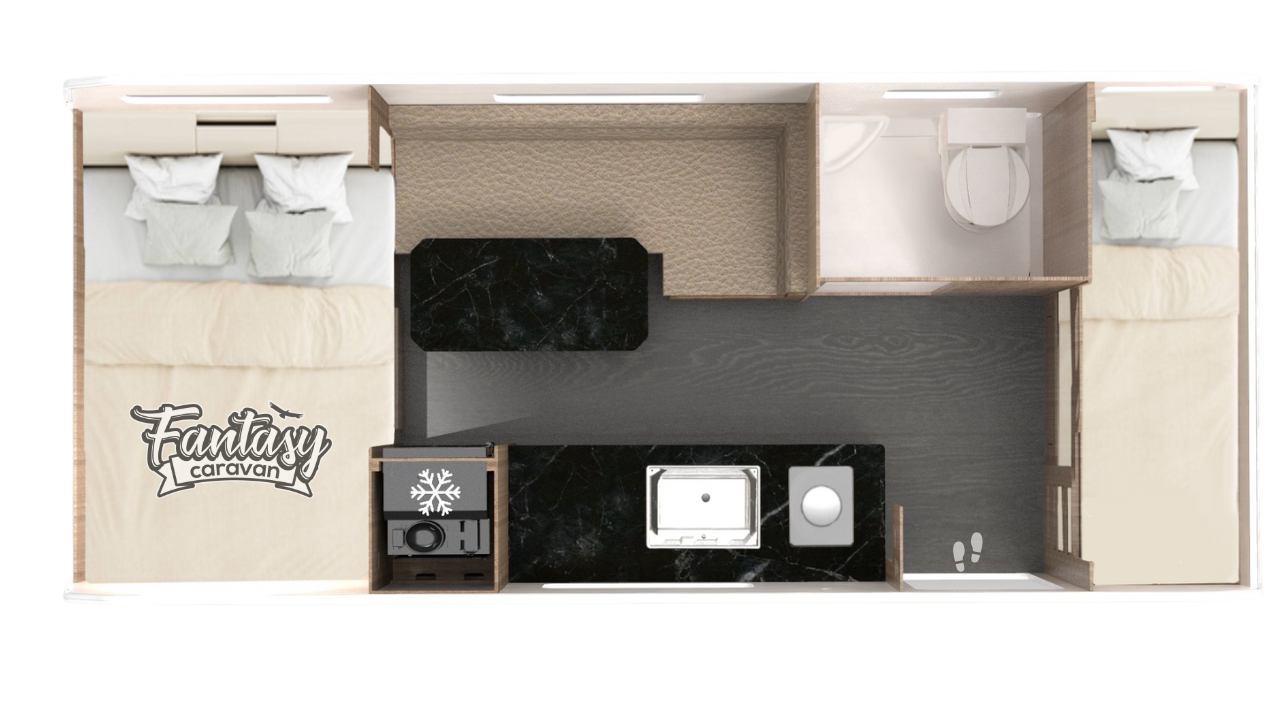

The Nano 16F is a small family caravan with a bunk bed, offering a practical layout for added comfort and flexibility. Inside, it features a spacious ensuite, a fully equipped kitchen, and modern appliances for a seamless travel experience. Lightweight and easy to tow, this 16ft caravan is perfect for extended adventures.

  • Find
    Find a Dealer
product
product

16ft Caravan with Bunk Bed

$64,990
  • Sleeps 4

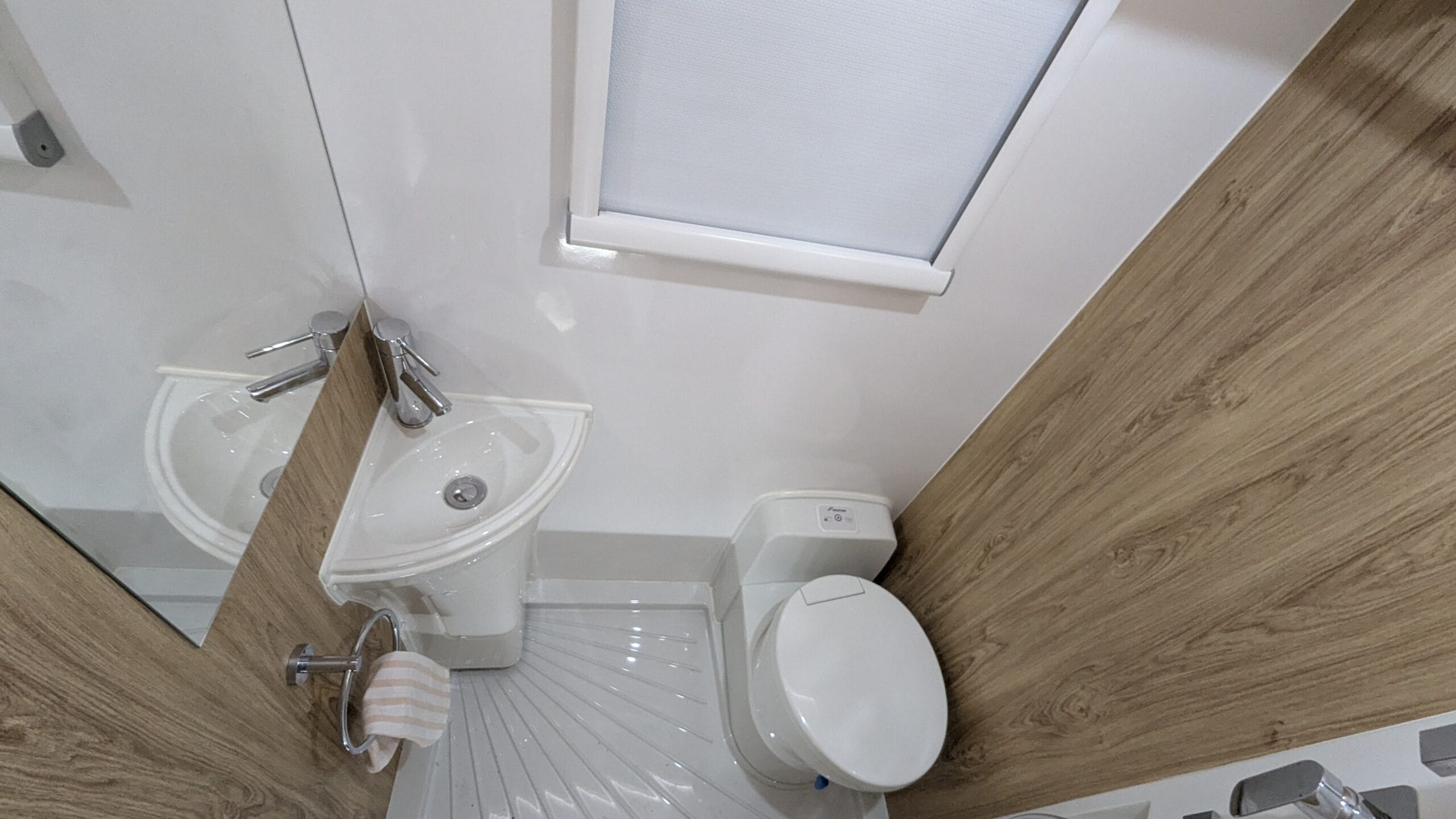

  • Ensuite
  • Fridge
  • Microwave
ATM 2000KG
Tare Mass 1580KG
Ball Weight 150KG
Length 6730(mm)
Width 2300(mm)
Height 2800(mm)
Selected Image
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Please Note:Images and specifications are for reference only and may vary from the actual caravan. Please confirm final details with our sales team. V1.12
Chassis
  • Chassis: 2-3/4”(70 x 50)+2”(50 x 50)
  • Drawbar: 4” (100 x 50)
  • Suspension: ALKO 1.8T Torsion
  • Tyres: 205/R14
  • Rims: 14” Alloy
  • Brake: 12” Electric
  • Coupling: 50mm Ball
  • Jockey Wheel: 8” Swing Up
  • Jack: Kincrome bottle jack
  • Gas Bottle Holder: 1 x 4.5KG
  • Step: Electric Single
Appliances
  • Air Conditioner: Rooftop Reverse Cycle

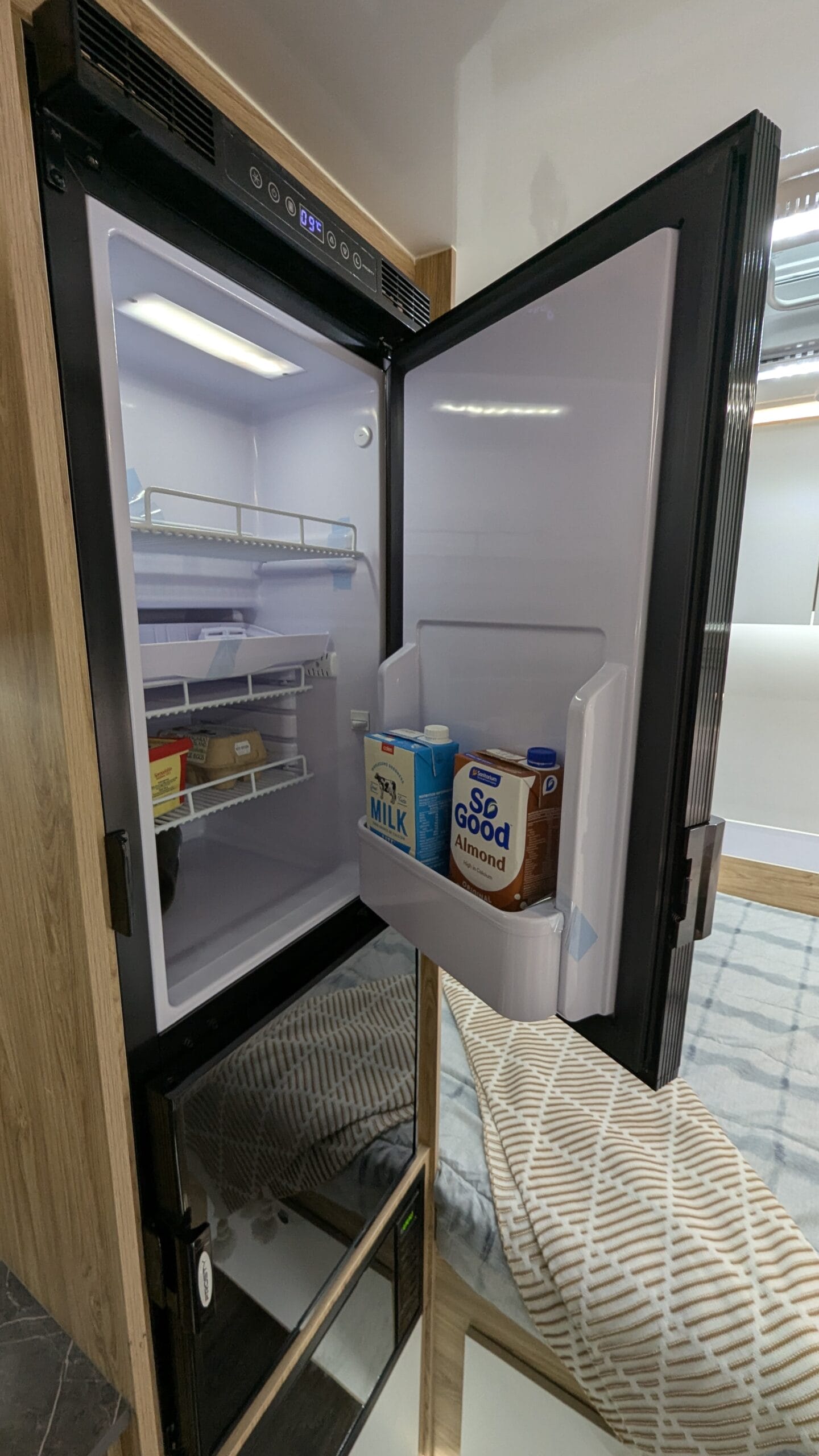

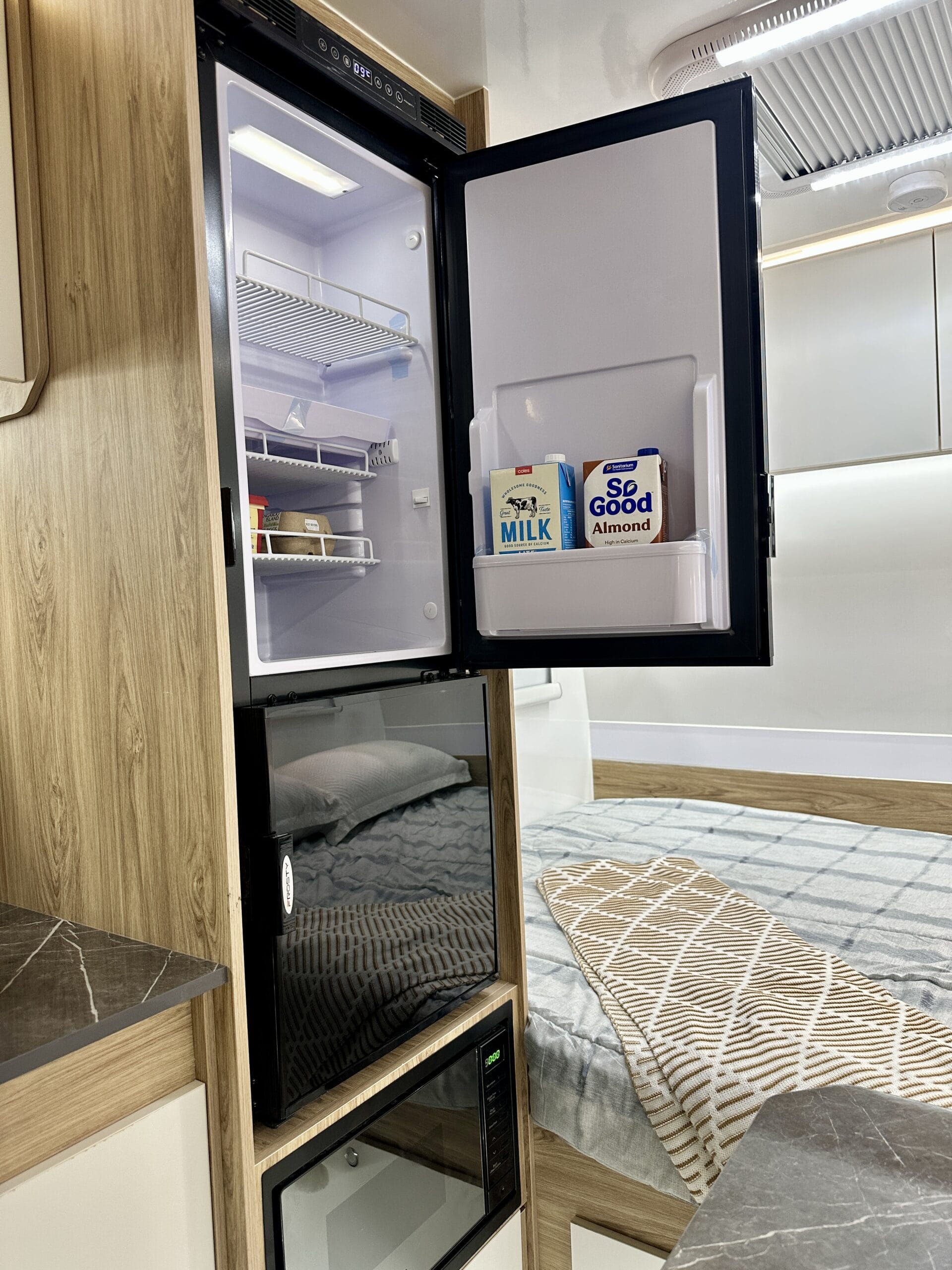

  • Fridge: 148L
  • Hot Water System: Truma Gas/Elec 14L

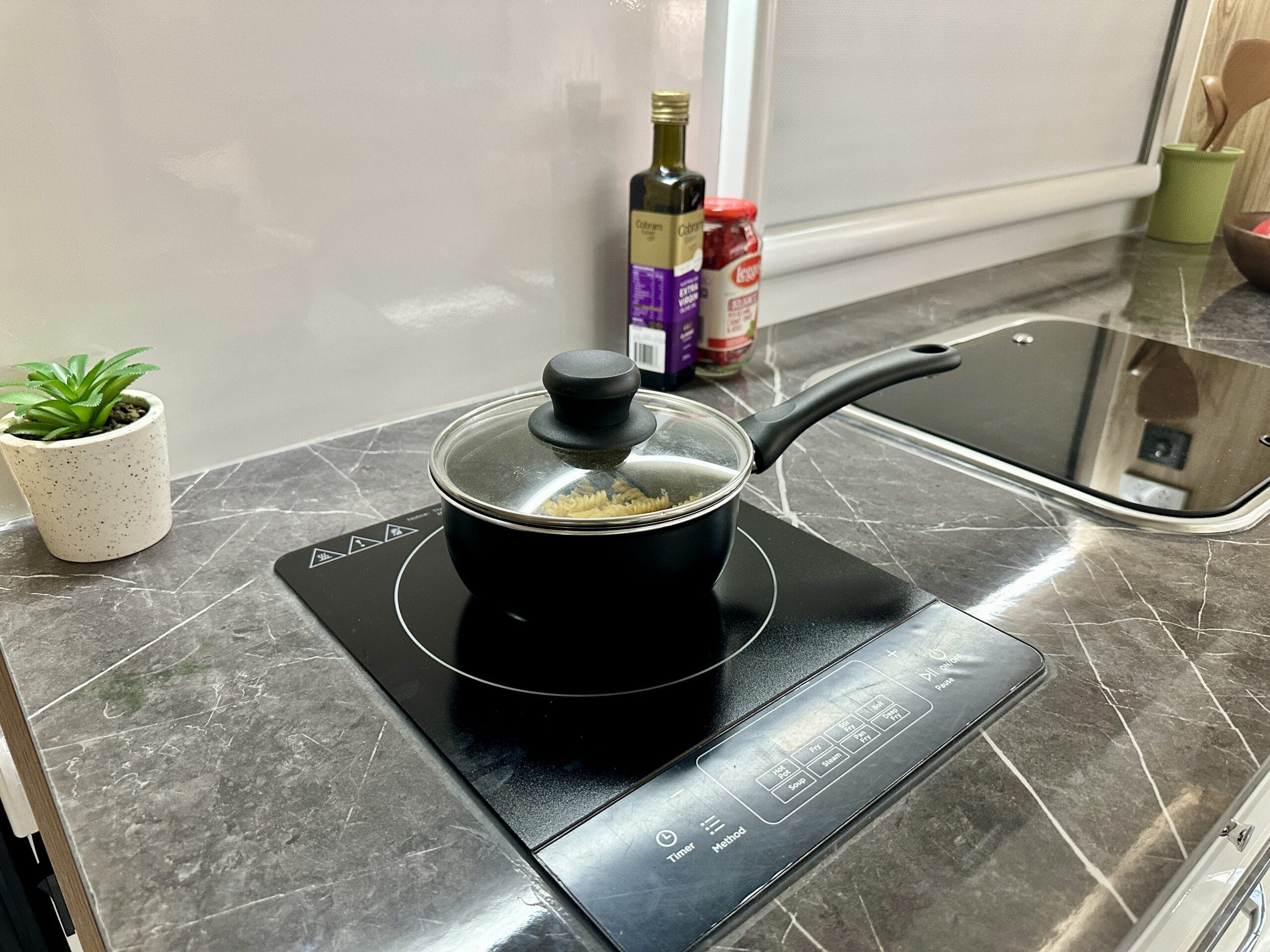

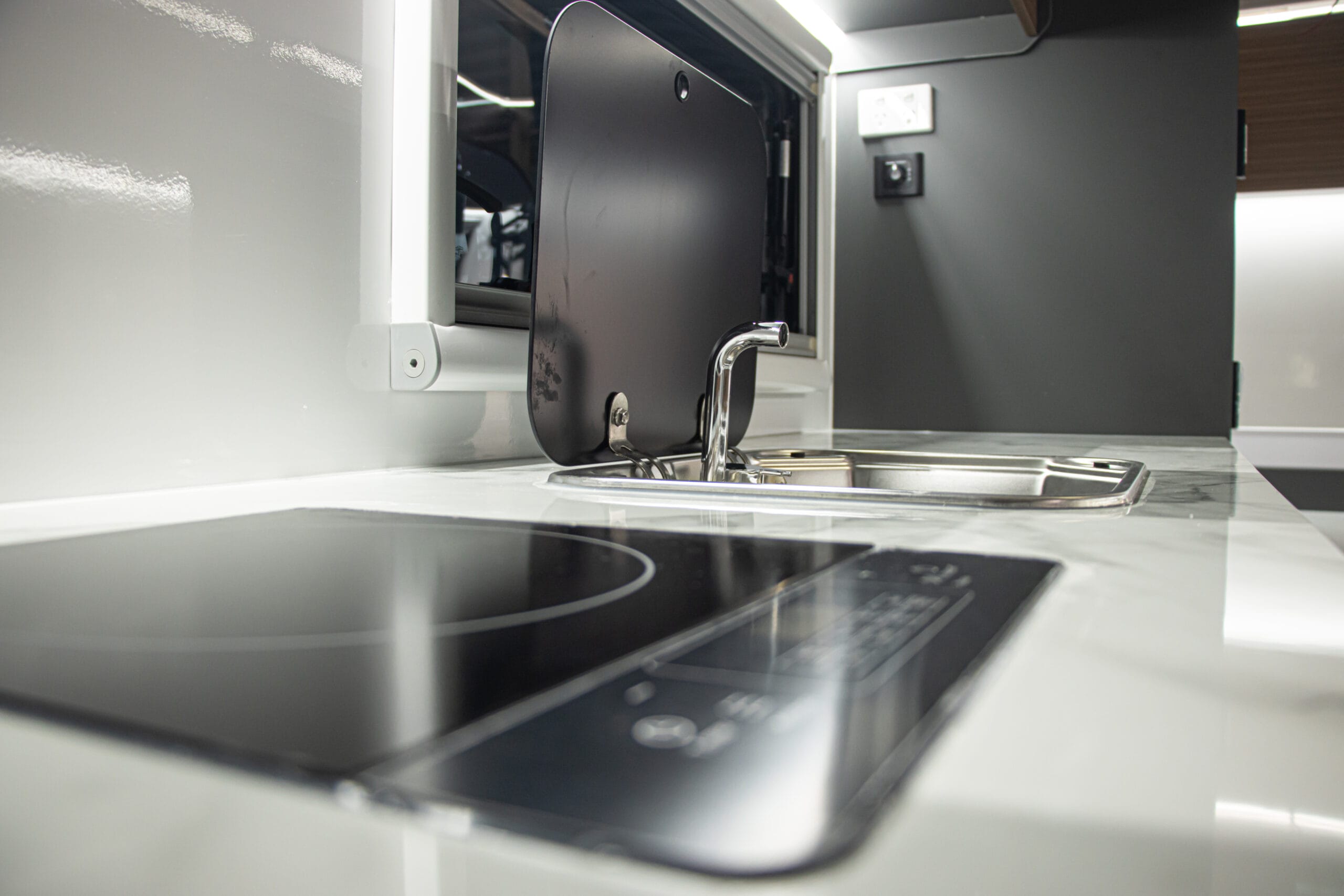

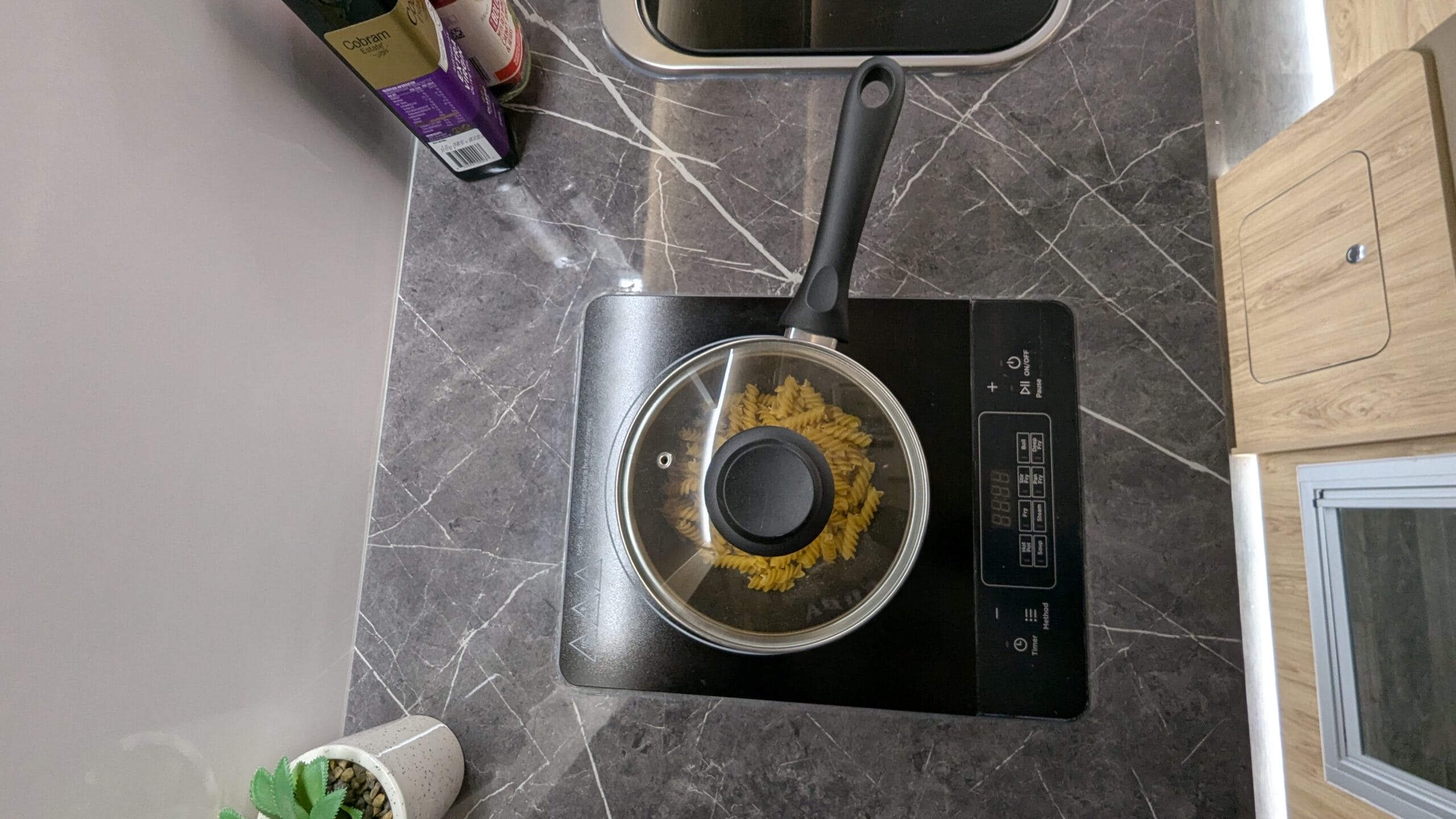

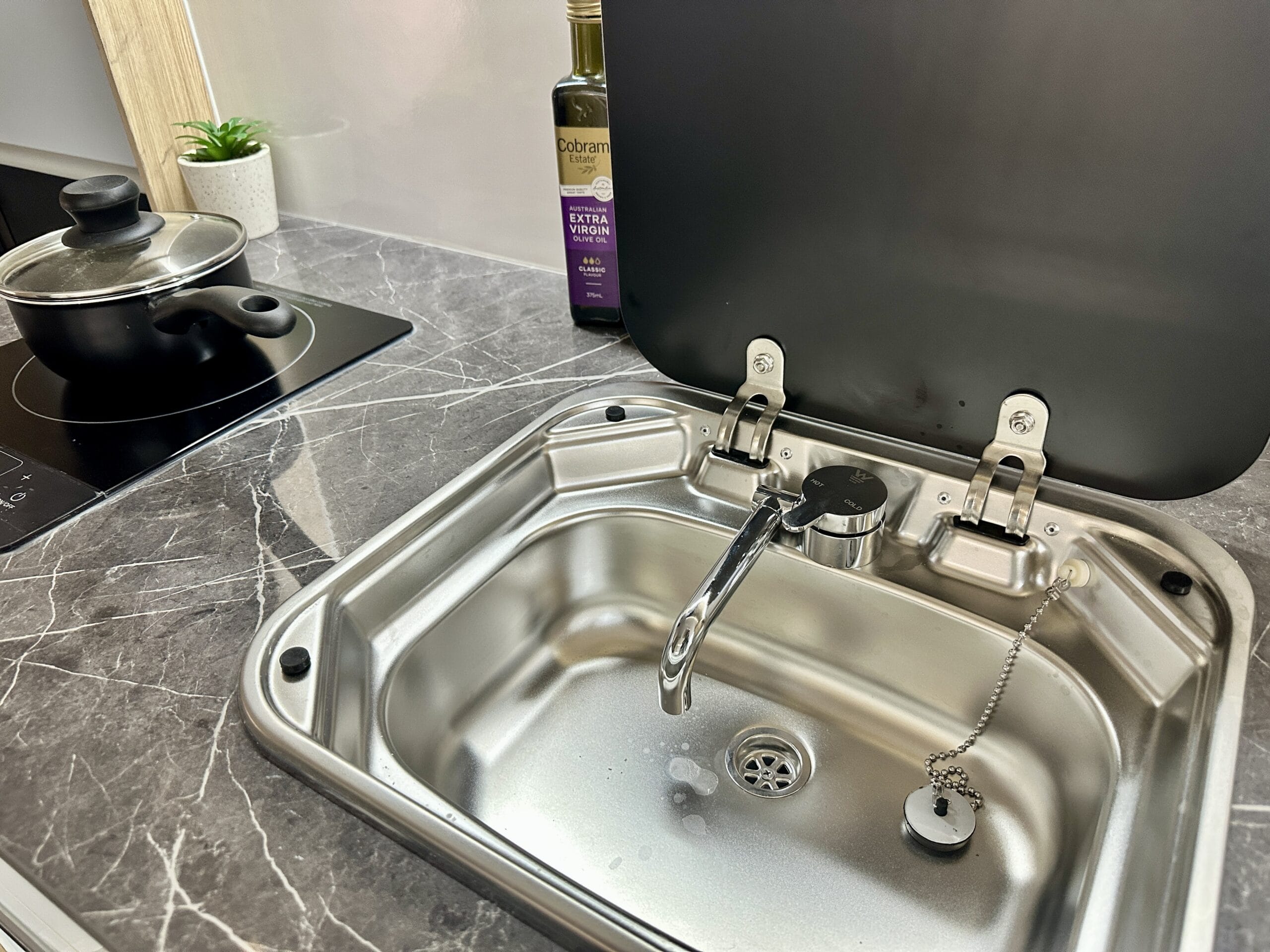

  • Stove: Induction
  • Microwave: 20L

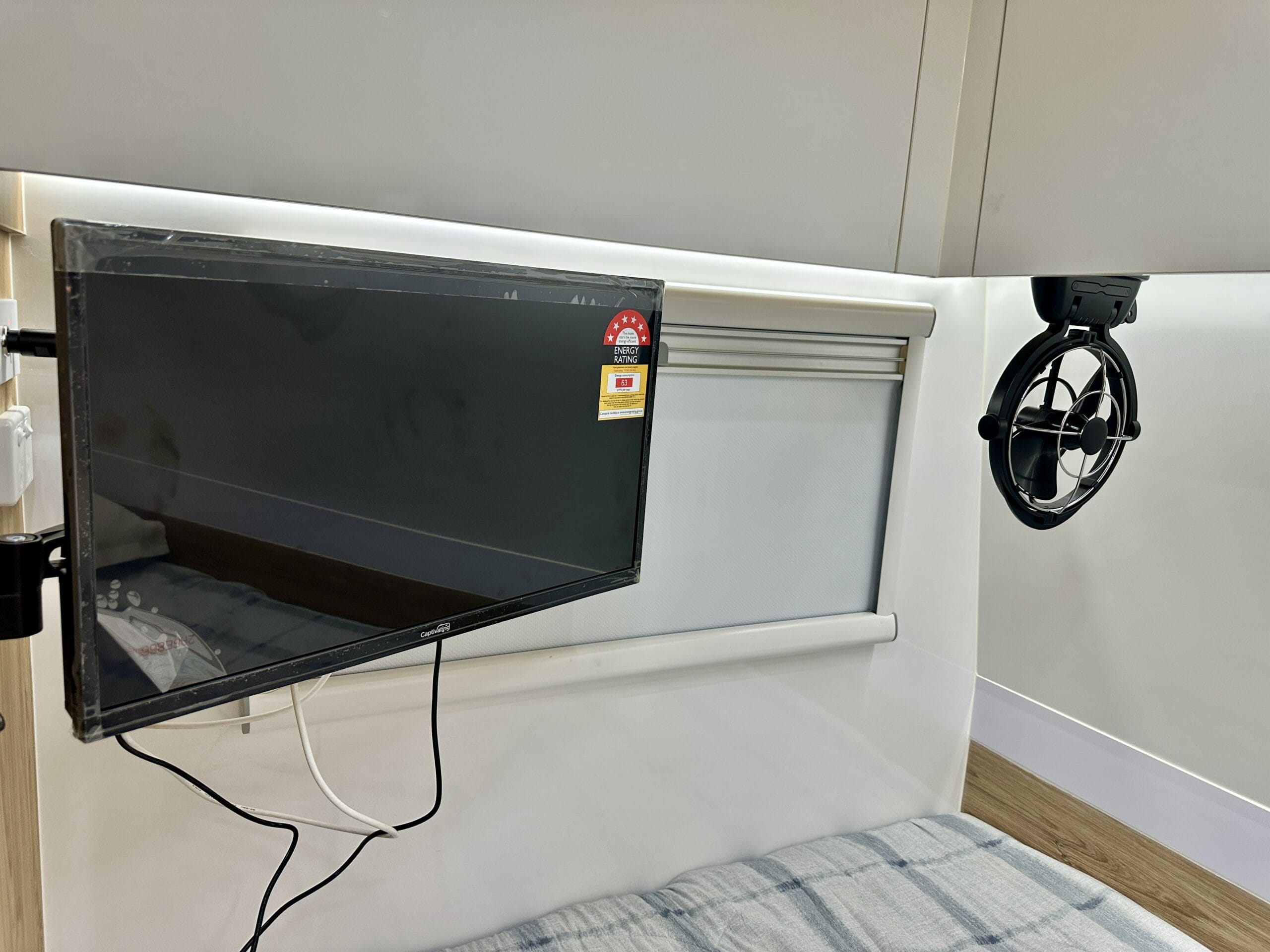

  • TV: 24” Smart TV
  • Smoke Alarm: Yes
  • Fire Extinguisher: Yes

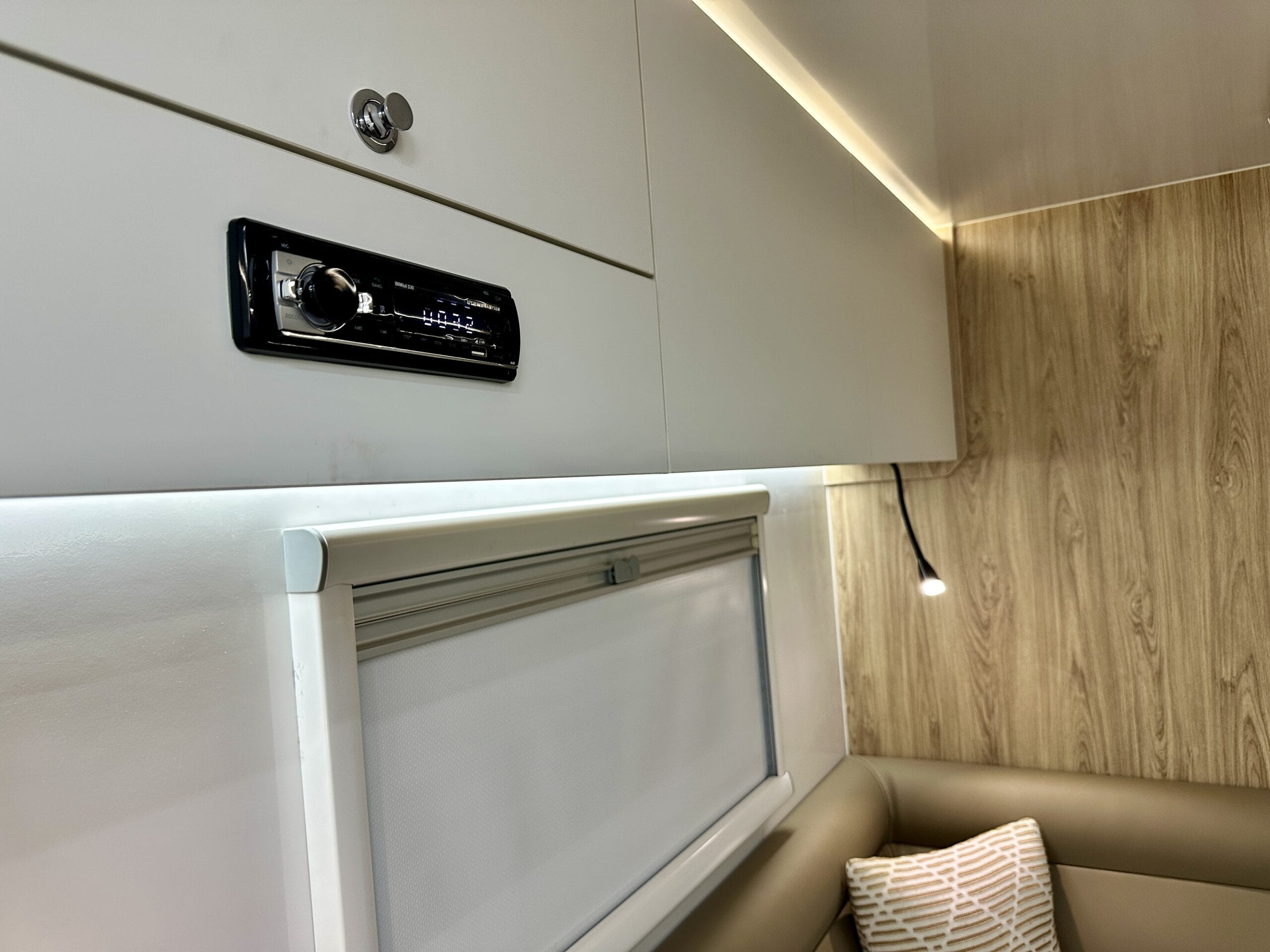

  • Stereo: Single Din with USB/Bluetooth/FM
  • Speakers: 2 x Internal
  • TV Antenna: Omni-directional
Electrical
  • Battery: Total 200AH Lithium
  • Solar: Total 200W
  • DCDC Charger: Renogy 40A

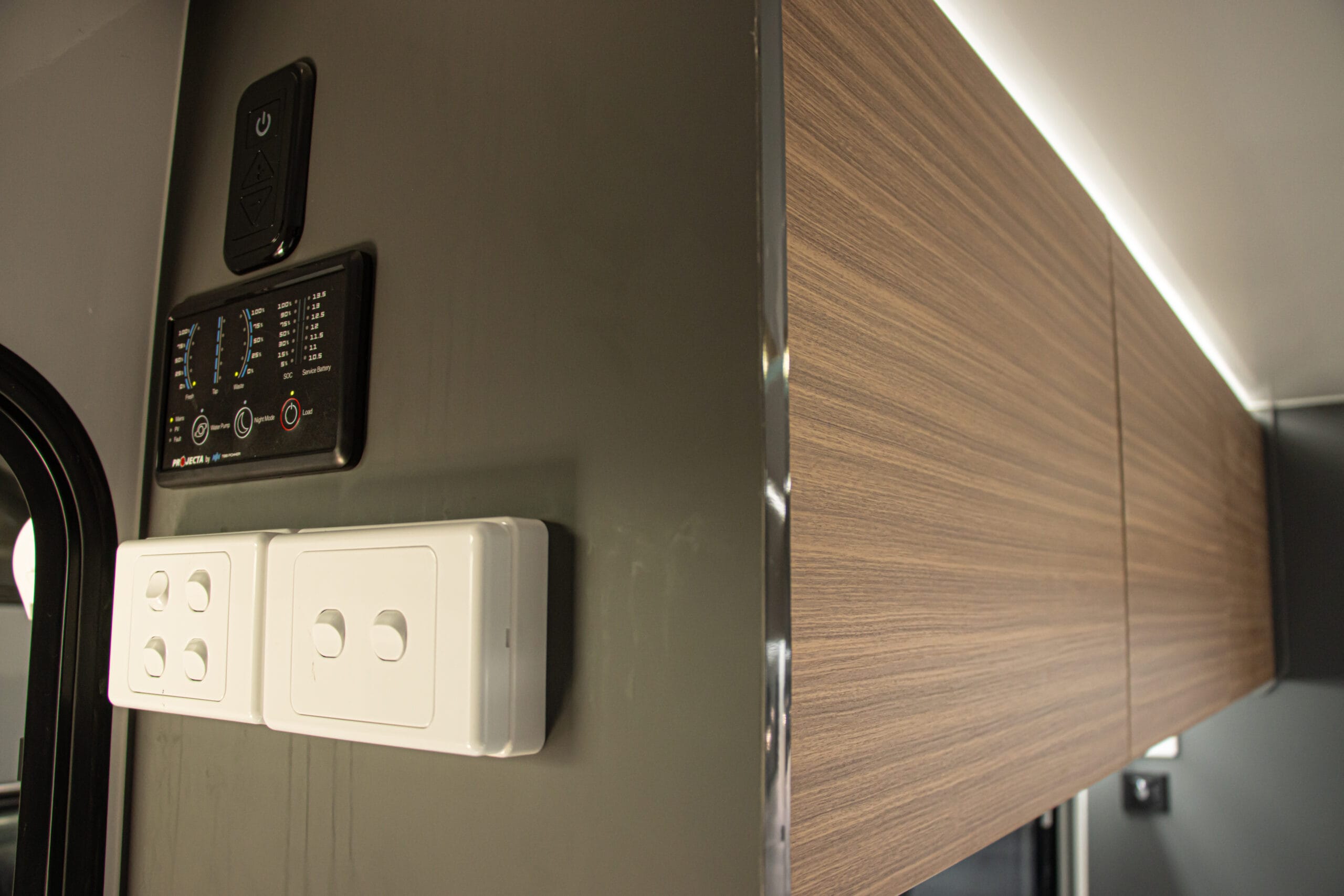

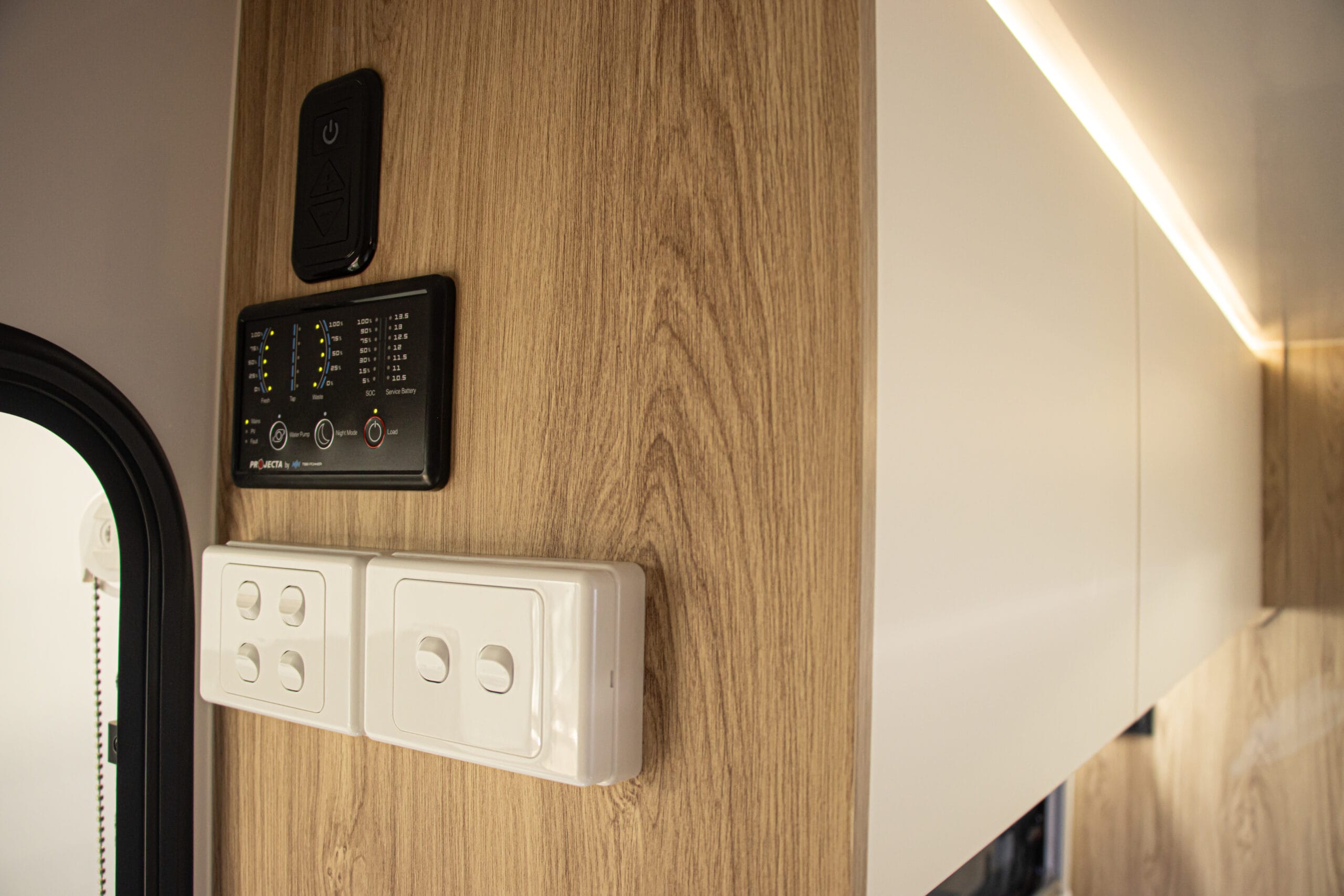

  • Power Management: Projecta PM200
  • 240V Socket: Multiple
  • 12V Socket: Multiple
  • USB Socket: Multiple
  • Reverse Camera: Wireless with Screen
  • Trailer Plug: 7 PIN Flat& Anderson
  • Ambient Lighting: LED Strip Lights
Plumbing
  • Fresh Water Tank: 1 x 95L
  • Grey Water Tank: 1 x 70L

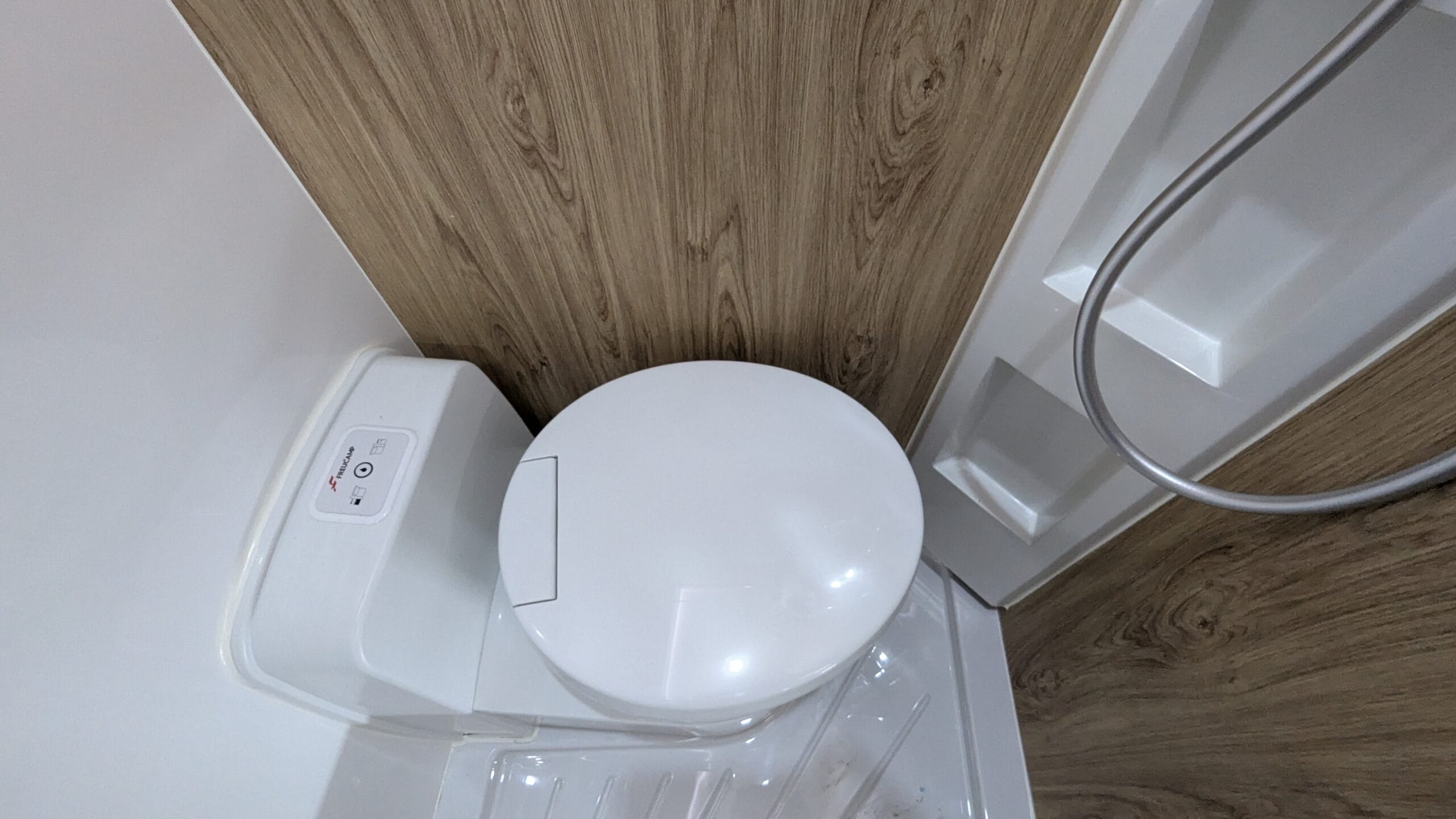

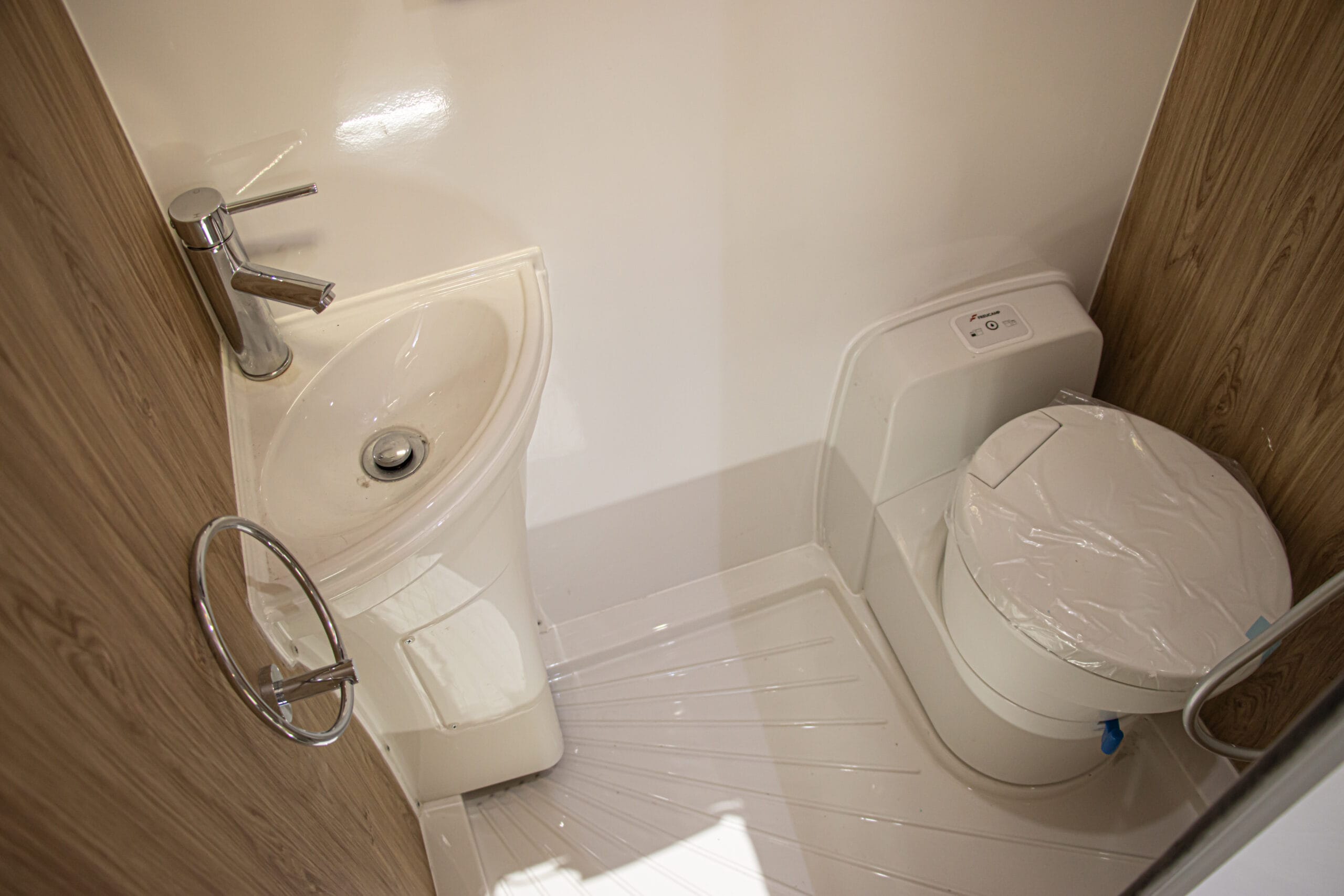

  • Toilet: Sanjo W5000
  • Water Pump: 12V Pump
  • Mains Water Inlet: Yes
  • Tap on Drawbar: Yes
External
  • Insulation: XPS Foam
  • Windows: Geson with Blind&Flyscreen
  • Awning: Manual Cassette 4.3m
  • Roof Hatch: 1 x Small with Light
  • Ensuite Hatch: Yes
  • BBQ Gas Point: Yes
  • Picnic Table: Yes
Internal

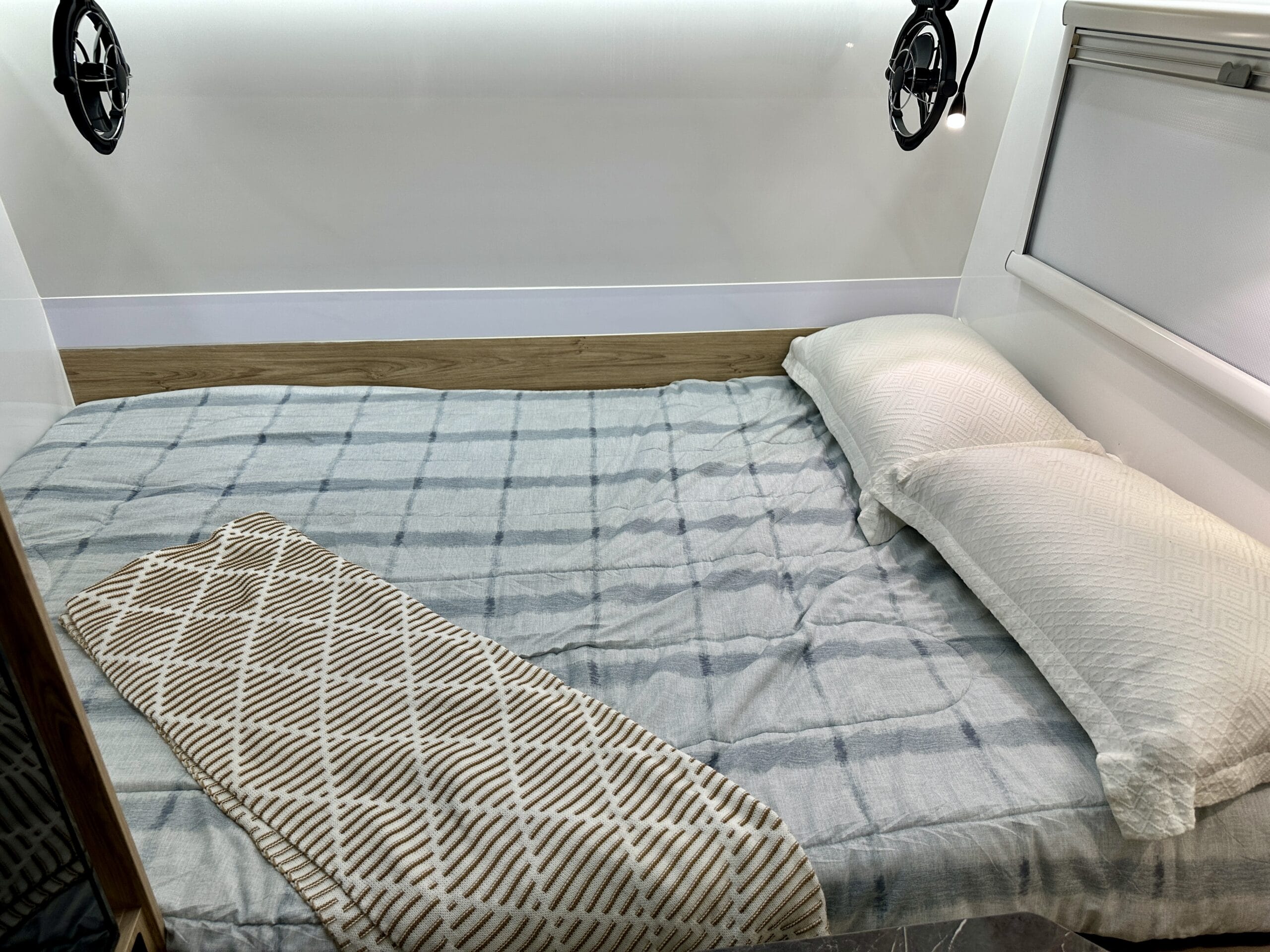

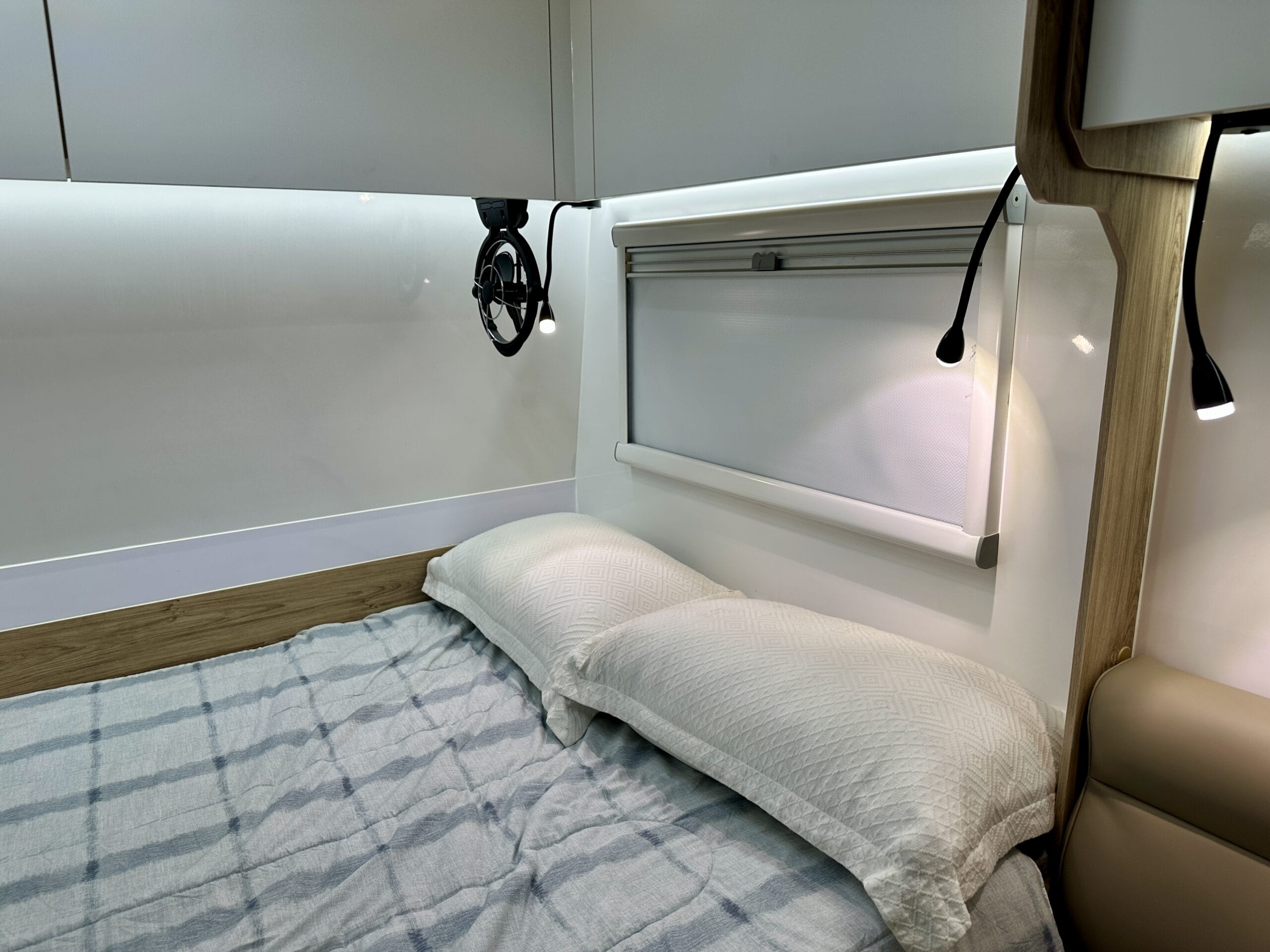

  • Mattress: Queen bed (2080 x 1370mm)

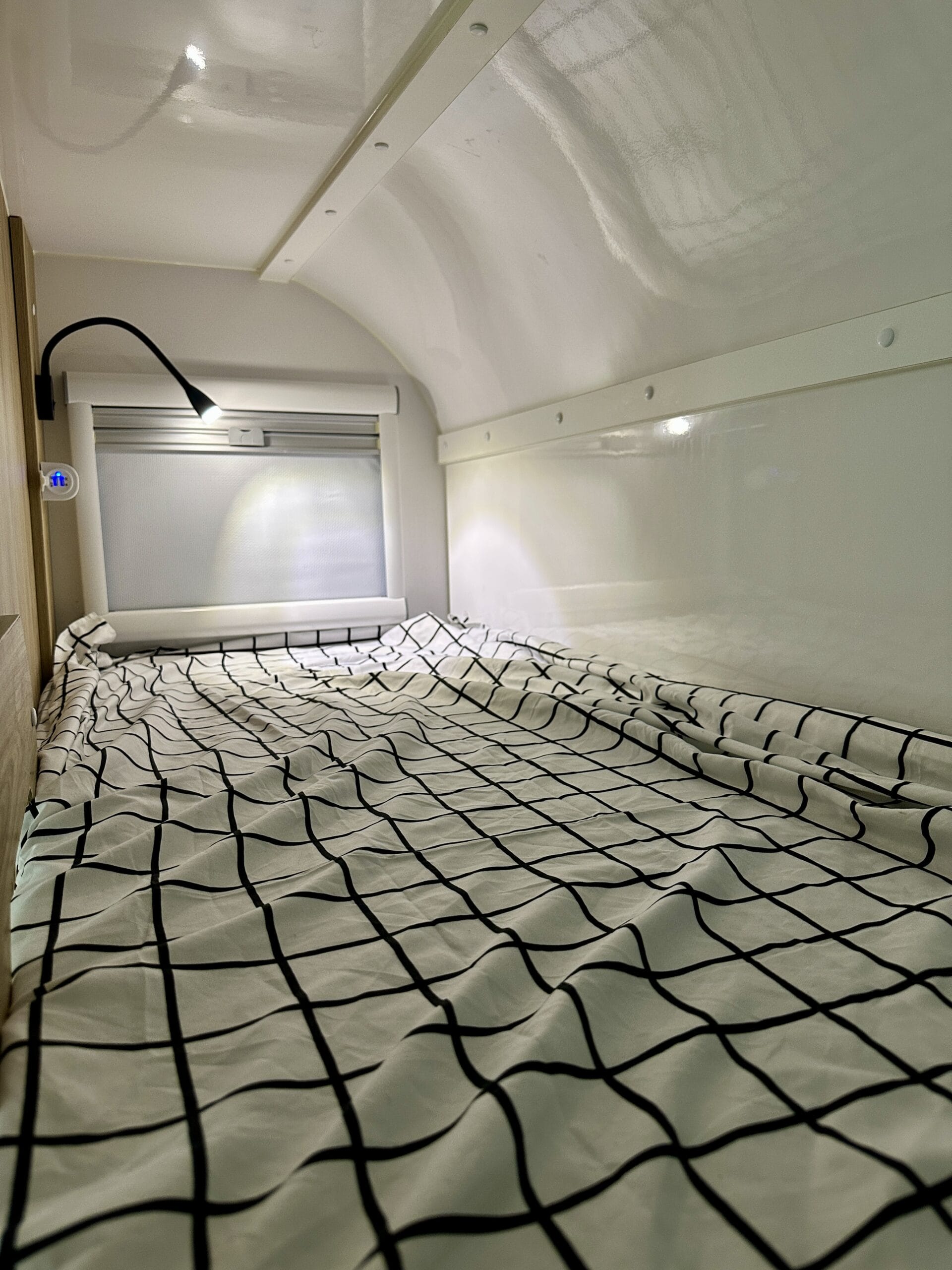

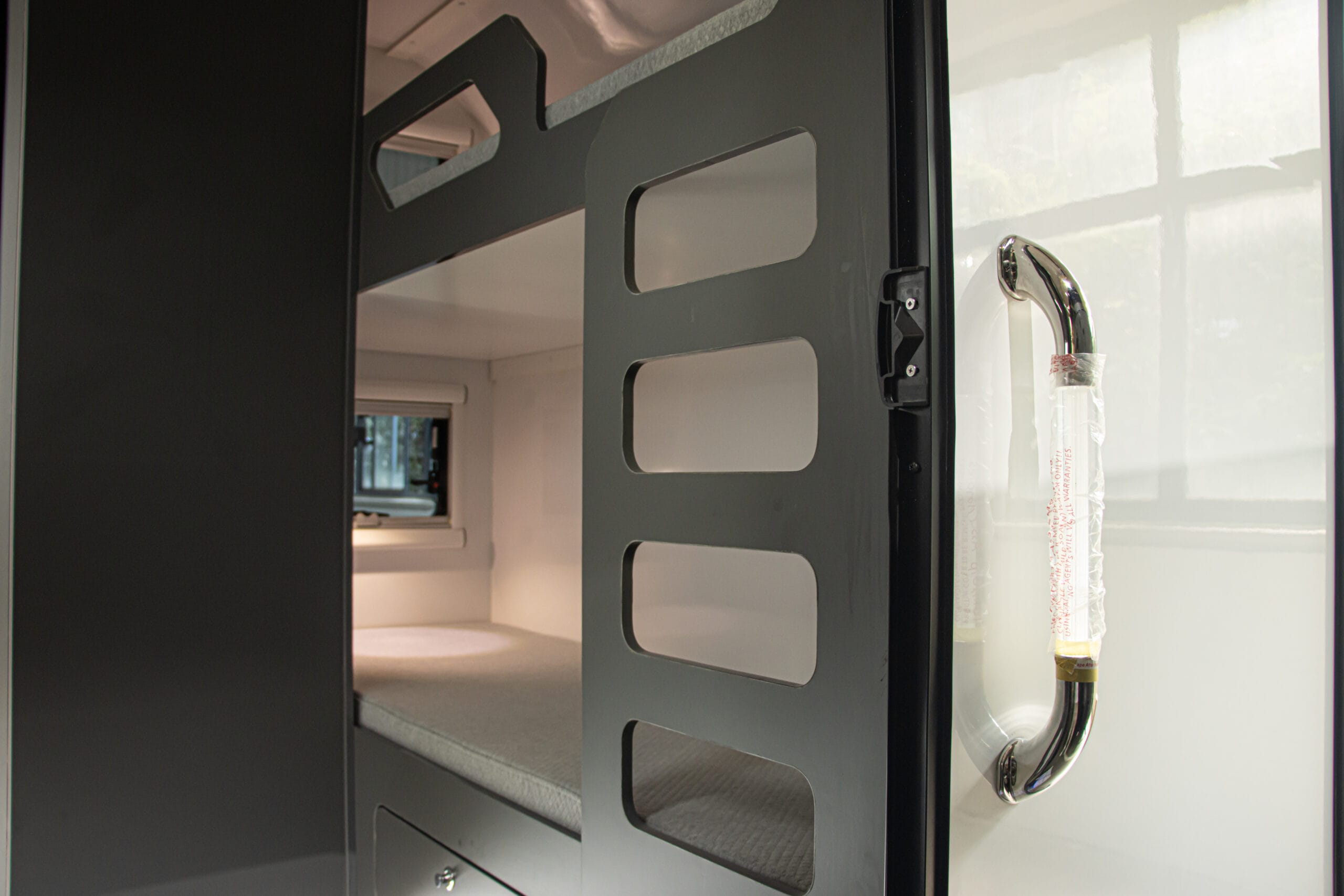

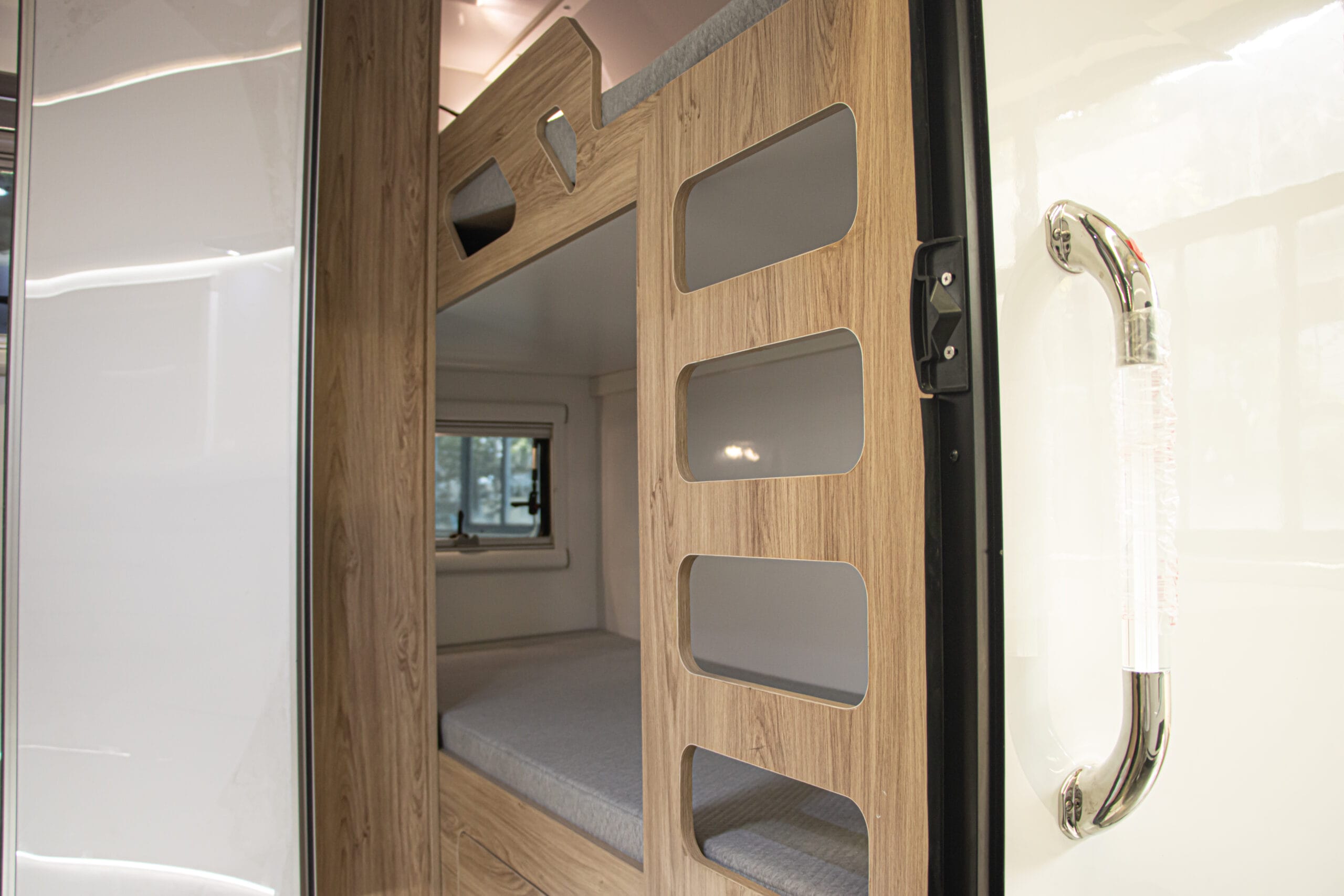

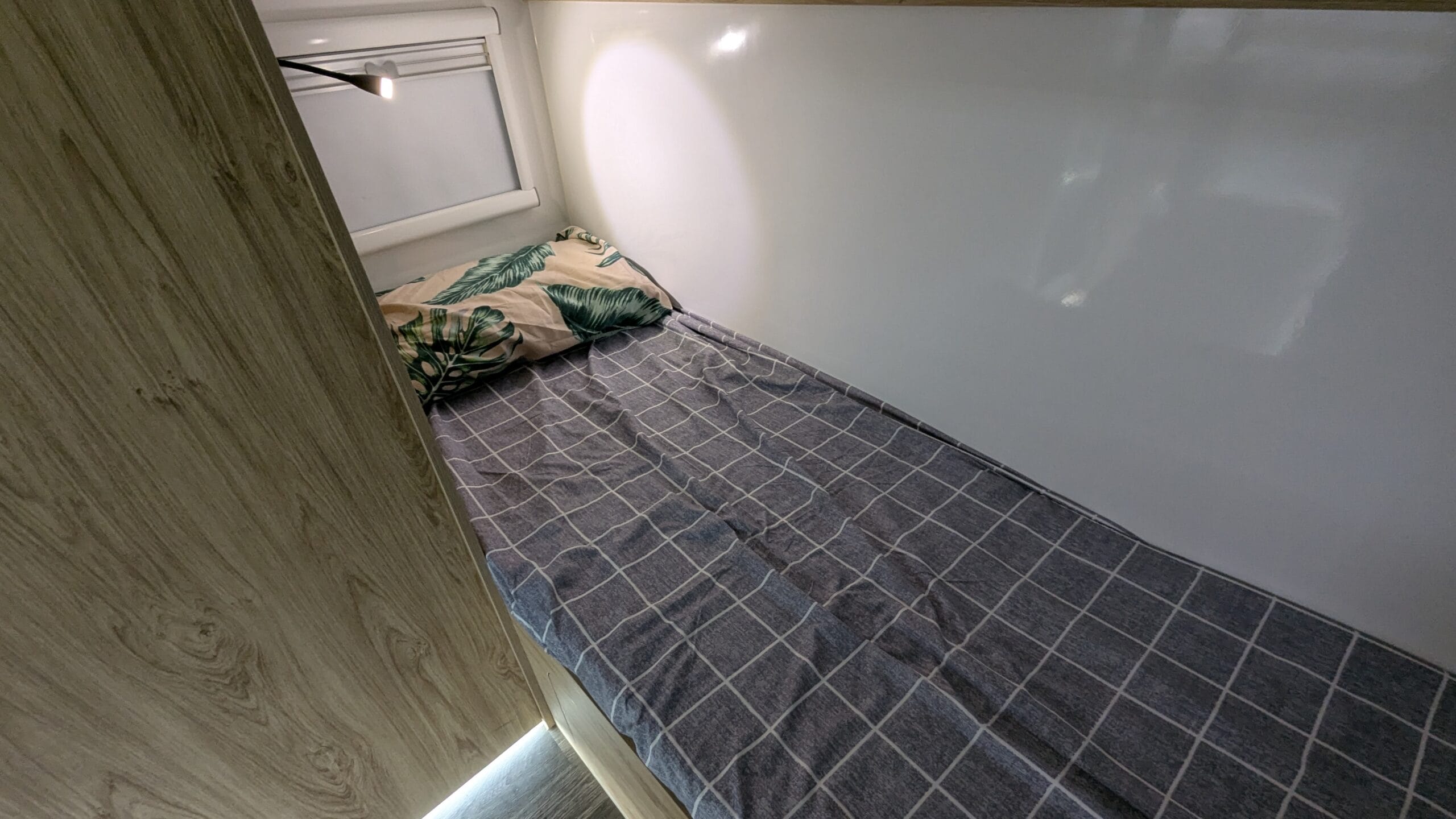

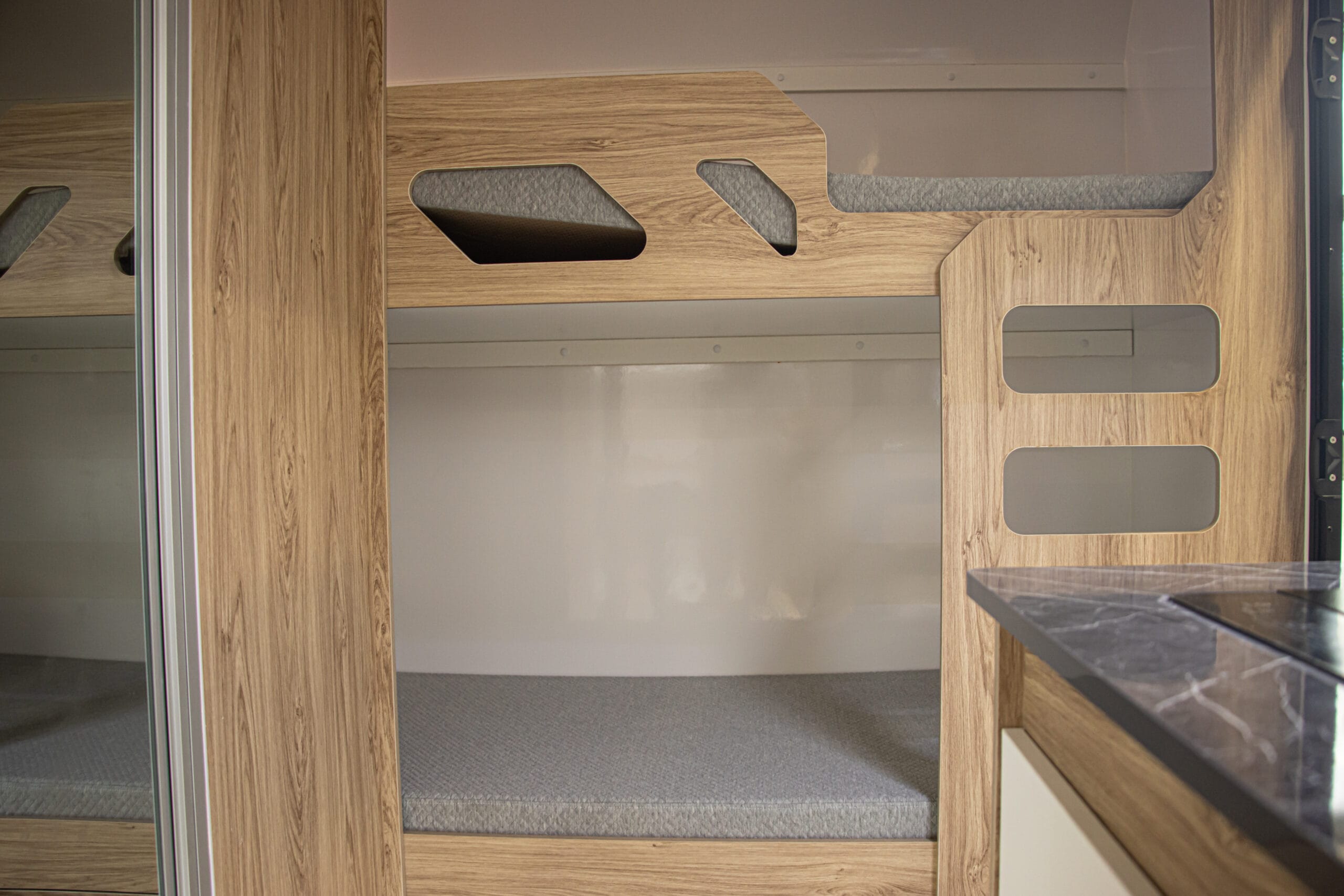

  • Bunk: 2
  • Bunk Top: 2080 x 670mm
  • Bunk Bottom: 2080 x 670mm

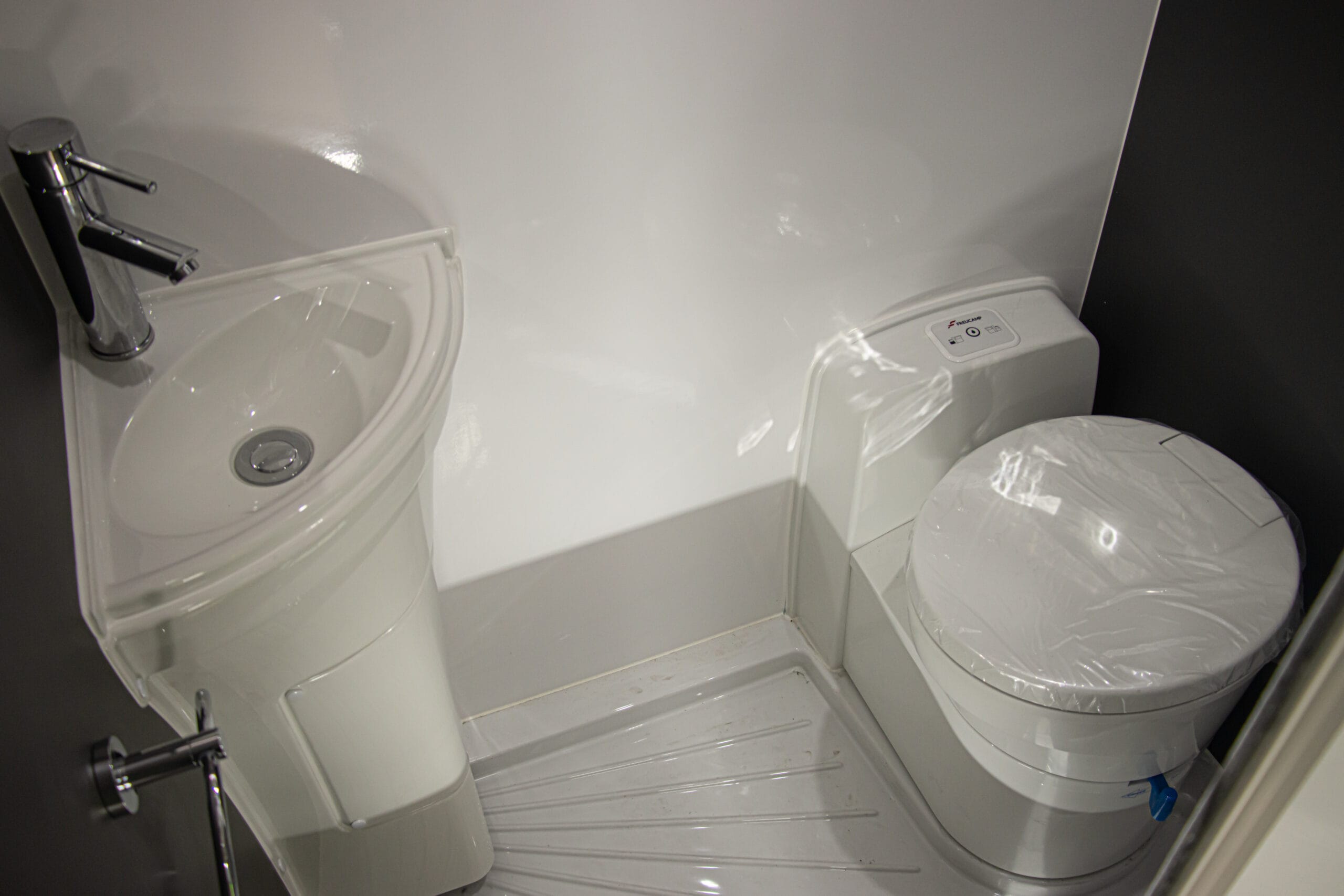

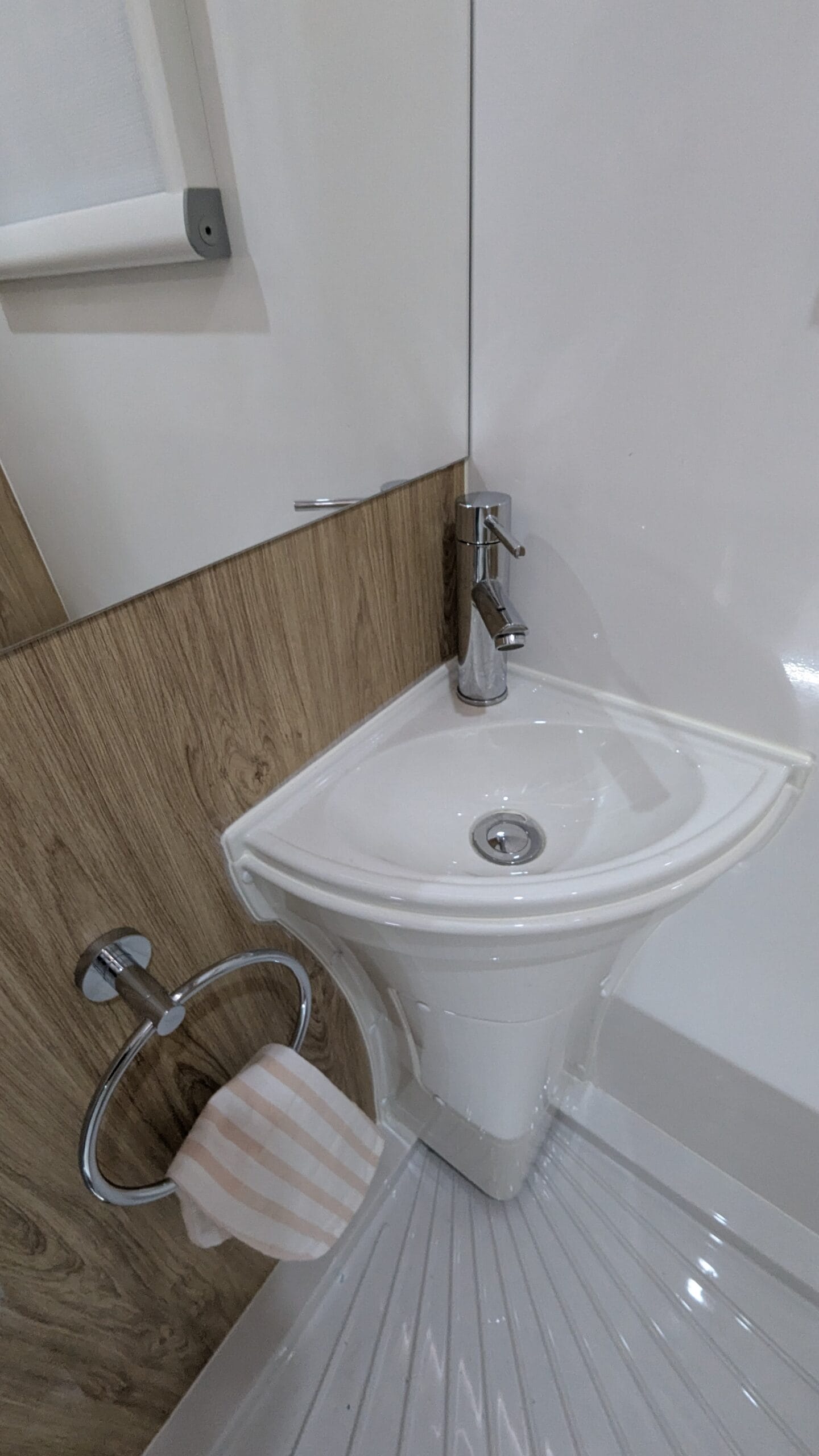

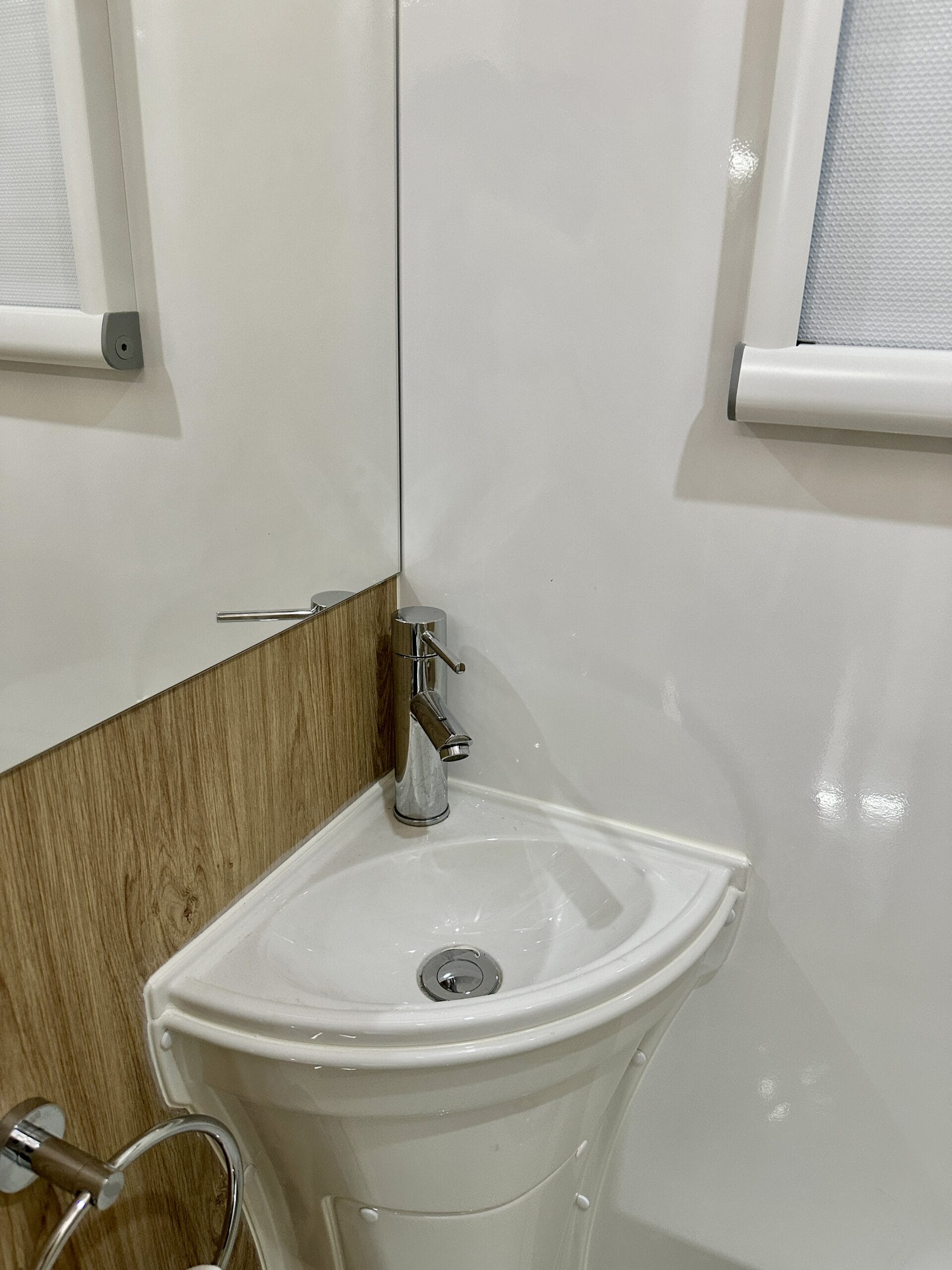

  • Ensuite Basin: Yes
  • Swivel Fan: Multiple
  • Chassis
  • Appliances
  • Electrical
  • Plumbing
  • External
  • Internal
Chassis
  • Chassis: 2-3/4”(70 x 50)+2”(50 x 50)
  • Drawbar: 4” (100 x 50)
  • Suspension: ALKO 1.8T Torsion
  • Tyres: 205/R14
  • Rims: 14” Alloy
  • Brake: 12” Electric
  • Coupling: 50mm Ball
  • Jockey Wheel: 8” Swing Up
  • Jack: Kincrome bottle jack
  • Gas Bottle Holder: 1 x 4.5KG
  • Step: Electric Single
Appliances
  • Air Conditioner: Rooftop Reverse Cycle
  • Fridge: 148L
  • Hot Water System: Truma Gas/Elec 14L
  • Stove: Induction
  • Microwave: 20L
  • TV: 24” Smart TV
  • Smoke Alarm: Yes
  • Fire Extinguisher: Yes
  • Stereo: Single Din with USB/Bluetooth/FM
  • Speakers: 2 x Internal
  • TV Antenna: Omni-directional
Electrical
  • Battery: Total 200AH Lithium
  • Solar: Total 200W
  • DCDC Charger: Renogy 40A
  • Power Management: Projecta PM200
  • 240V Socket: Multiple
  • 12V Socket: Multiple
  • USB Socket: Multiple
  • Reverse Camera: Wireless with Screen
  • Trailer Plug: 7 PIN Flat& Anderson
  • Ambient Lighting: LED Strip Lights
Plumbing
  • Fresh Water Tank: 1 x 95L
  • Grey Water Tank: 1 x 70L
  • Toilet: Sanjo W5000
  • Water Pump: 12V Pump
  • Mains Water Inlet: Yes
  • Tap on Drawbar: Yes
External
  • Insulation: XPS Foam
  • Windows: Geson with Blind&Flyscreen
  • Awning: Manual Cassette 4.3m
  • Roof Hatch: 1 x Small with Light
  • Ensuite Hatch: Yes
  • BBQ Gas Point: Yes
  • Picnic Table: Yes
Internal
  • Mattress: Queen bed (2080 x 1370mm)
  • Bunk: 2
  • Bunk Top: 2080 x 670mm
  • Bunk Bottom: 2080 x 670mm
  • Ensuite Basin: Yes
  • Swivel Fan: Multiple

Inclusions

product image
PROJECTA PM200 B.M.S
product image
200AH Lithium Battery
product image
RENOGY 40A DCDC Charger
product image
200w Solar Panel
product image
20L Microwave
product image
24 inch Smart TV
product image
TV Antenna
product image
Rooftop Reverse Cycle Air Conditioner
product image
Extra 200w Solar Panel
product image
Extra 200AH Lithium Battery
product image
Diesel Heater
